Welcome to the Finding Malware Series

The "Finding Malware" blog series is authored to empower the Google Security Operations community to detect emerging and persistent malware threats. Our post dives deep into the LUMMAC.V2 malware family and the detection opportunities available within Google Security Operations (SecOps). Happy hunting!

About LUMMAC.V2

Also known as: Lumma, Lummac2, Lummastealer


LUMMAC.V2 is a rework of the LUMMAC credential stealer written from C to C++, with a full-fledged binary morpher. LUMMAC.V2 is an infostealer malware that targets a wide range of applications, including browsers, crypto wallets, password managers, remote desktop applications, email clients, and instant messaging applications. It steals information such as credentials, logins, emails, personal and system details, screenshots, and cookies, subsequently sending this data over HTTP in a ZIP archive.

LUMMAC.V2 is a prevalent malware family often distributed via the “ClickFix” technique, a social engineering method where victims are shown fake user verification CAPTCHA pages, tricking them into executing commands (e.g. MSHTA or PowerShell) using the Windows Run dialog box. This action initiates the  execution of a PowerShell payload in the background hidden from the user. This blog focuses on the malware infection chain detailing three variations to deliver LUMMAC.V2 and execute it on the host.

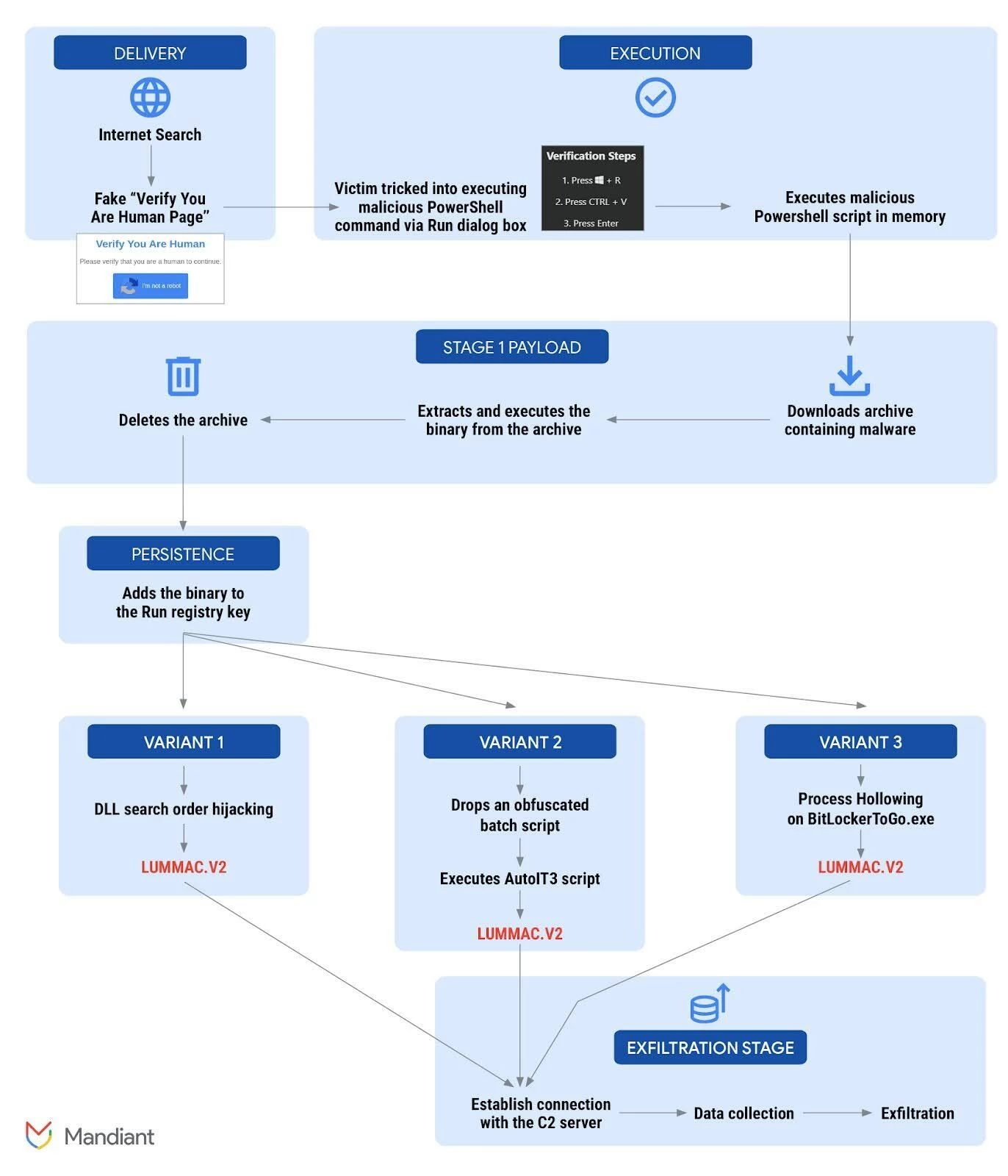

Malware Lifecycle



Delivery, Execution, and Persistence

The infection begins with a simple internet search. Users searching for specific keywords, such as those related to cracked software, popular movies, or the latest music releases encounter malicious links within their search results. Clicking on one of these links redirects them to a fake "Verify You Are Human" CAPTCHA page.

This page prompts the user to perform the following actions, mimicking the security check:

• Press Windows button + R (opens the Run dialog box)
• Press CTRL + V ( pastes a command that has been secretly copied to the user's clipboard)
• Press Enter (executes the command)

The figure below shows an example of the deceptive page in action, while figure 2 reveals the underlying website’s source code.

Figure 1: Fake captcha website

Figure 2: Source code of the Fake captcha

Here's the PowerShell command that's executed behind the scenes:

Figure 3. Copied PowerShell Command

This command uses the Invoke-WebRequest PowerShell cmdlet to download a file called pnk3.txt from a malicious website. The -W Hidden parameter ensures the PowerShell command will run in the background without any console window being displayed to the user. The command also reads the contents of the downloaded pnk3.txt into memory and executes it using the Invoke-Expression (iex) cmdlet.

The downloaded pnk3.txt file contains the following:

Figure 4: Malicious Powershell script

This PowerShell script is a malicious loader designed to execute in memory and perform the following:

• It begins by downloading a malicious ZIP archive from a remote server using the Start-BitsTransfer PowerShell command. Subsequently, a directory is created within the user's AppData folder to serve as the destination for the extracted files.
• The downloaded ZIP file is then extracted using the Expand-Archive command, and its contents are saved into the newly created directory within the AppData folder.
• After the extraction is complete, the script deletes the original ZIP file, further minimizing traces of the attack.
• Following the extraction, the script executes the malicious program, named Perspective.exe, using the Start-Process command.
• To ensure persistence, the script adds a registry entry under HKCU:\SOFTWARE\Microsoft\Windows\CurrentVersion\Run. This registry entry, named tE1koeXl, points to the path of the malicious executable, Perspective.exe, ensuring it is executed upon user logon.

Mandiant has discovered several variations of this malicious PowerShell script loader. Once executed, these loaders can initiate a variety of attacks to execute LUMMAC.V2, including:

• DLL Hijacking: Exploiting legitimate programs by introducing a malicious DLL with the same name that is loaded preferentially over the legitimate one.
• Process Hollowing: Injecting malicious code into legitimate processes to conceal their activity.
• AutoIt-based Dropper: Utilizing the AutoIt scripting language to obfuscate and execute the LUMMAC.V2 information stealer.

Variation 1: DLL Hijacking

This attack exploits a legitimate executable, vulnerable to DLL search order hijacking to execute the LUMMAC.V2 malware.

In this variation, a malicious PowerShell script loader initiates the process by downloading tmp.txt.zip, an archive containing the files Setup.exe and a specially crafted malicious DLL, tak_deco_lib.dll, as illustrated in the Figure 5.

Figure 5: Archive containing malicious payload


When executed, Setup.exe intends to load a legitimate DLL but, due to the vulnerability, it inadvertently loads the malicious tak_deco_lib.dll instead. This is clearly demonstrated in the figure below, where Setup.exe successfully loads the malicious DLL from the same directory, ultimately executing the LUMMAC.V2 malware.

Figure 6: Delivery using DLL search order hijacking

Variation 2: Process Hollowing

Process hollowing is a multi-stage attack technique where malware hijacks a target process and replaces its legitimate code with malicious code. Attackers use process hollowing for malware delivery because it allows them to disguise their malicious code within a legitimate process, making it harder for security tools to detect.

In this variation of LUMMAC.V2, a malicious PowerShell script loader drops and executes MyDockFinder.exe, an in-memory dropper written in Go. MyDockFinder.exe uses process hollowing to compromise the legitimate Windows process, BitlockerToGo.exe, by creating a new instance of BitlockerToGo.exe and replacing its process memory with malicious code.

An analysis of the API calls and techniques involved in this process hollowing follows below:

Figure 7: Process Hollowing on BitlockerToGo.exe

To extract the injected payload, a crucial point for interception is just before the malware writes its code into the target process's memory using the NtWriteVirtualMemory API, as shown in the figure below:

Figure 8: Extraction of the injected payload

The extracted payload, obtained from MyDockFinder.exe's memory at address 0x05480000, produced a SHA256 hash of 842639021ac1b780ee77e7c40ca98745677cbf156764201638b6d33ac8c6f548. This hash allowed for further investigation, ultimately revealing the payload's identity as the LUMMAC.V2 malware as shown in the figure below.

Figure 9: Identification of the extracted payload

Variation 3: AutoIt-based Dropper

In this variation, a malicious PowerShell script loader drops and executes a binary file named Vkcm1ks1s3.exe, which is a memory-only dropper implemented as a NSIS installation package. Upon execution, this binary drops multiple malicious files into the user's temporary folder located at C:\Users<username>\AppData\Local\Temp, as illustrated in the figure below:

Figure 10: Files dropped by the malware

Vkcm1ks1s3.exe then executes the command to rename the Northwest file to Northwest.bat and run it:

The Northwest.bat is a heavily obfuscated Windows batch file that once decoded, contains the following:

Figure 11: Deobfuscated Northwest.bat file

This batch script is designed to evade detection and execute a malicious payload:

• Obfuscation: The script hides its true commands using Set command variable assignments.
• Anti-Analysis Checks:
  • It scans for security applications like Webroot SecureAnywhere and Quick Heal AntiVirus. If found, it initiates 186 pings to the loopback address.
  • It also checks for Avast Antivirus, AVG Antivirus, Bitdefender, Norton Security, and Sophos Endpoint Defence Software. If detected, it sets variables like Permanent.pif to AutoIT.exe and JgBvUTNMyahDmpGgfTNcnvh to .a3x, attempting to replace original filenames to evade detection.
• Payload Delivery:
  • It creates a folder named 374415.
  • It uses findstr with the /V option to filter out lines containing the string "CowReboundHeadingRedeem" from a file named Beth and redirects the output to Permanent.pif.
  • It uses copy /b to append the contents of Elder to Permanent.pif (located in the 374415 directory), after appending the contents of Elder, Permanent.pif is a legitimate AutoIt binary.
  • It navigates to the 374415 directory and concatenates files Suddenly, Guest, Foundation, Silence, Transfer, Hudson, and Franchise into A.a3x, an obfuscated AutoIt script.
  • It executes the AutoIt script A.a3x using the AutoIt binary Permanent.pif with start /I.
• Delay
  • It uses the Choice command to introduce a 5-second delay before exiting, allowing the payload to execute.

Mandiant deobfuscated the AutoIt script (illustrated in the figure below). This script is a memory only dropper for the Infostealer LUMMAC.V2.

The script initiates its execution with a series of anti-analysis checks:

• Sandbox Evasion: It checks the host computer's name against the known AV emulators like tz (Bitdefender), NfZtFbPfH (Kaspersky), and ELICZ (AVG), and checks for the username test22, commonly found in analysis setups.
• Antivirus Evasion:  It specifically targets Avast Antivirus by checking if the avastui.exe process is currently running.

Figure 12.1: Sandbox and Antivirus Evasion

• Anti-Debugging: A time-based check using the GetTickCount API is employed to detect if the script is being run in a debugger or analyzed step-by-step.

Figure 12.2: Anti-Debugging

• Simulated Internet Detection: It pings an invalid domain (HfhrdyrpMfGsKgEBCkTWjnP.HfhrdyrpMfGsKgEBCkTWjnP) to ensure it's not running in an isolated environment with fake internet services.
• If any of the above checks are triggered, the script terminates.
• The script deletes the original AutoIt script file (A.a3x) from the disk.

Figure 12.3: Simulated Internet Detection and script deletion

Once the initial anti-analysis checks are passed, the script proceeds to construct its encrypted payload from a hex-string hardcoded within the script. To ensure compatibility, the script determines the process architecture (32-bit or 64-bit) and utilizes the appropriate shellcode to copy and decrypt the hex-string into a designated memory buffer. The script employs the RtlDecompressFragment API to decompress the payload, which was compressed using the LZNT1 algorithm, before executing it in the memory.

The final payload executing in memory is identified to be LUMMAC.V2 malware.

Having detailed the intricate delivery, execution, and persistence mechanisms of LUMMAC.V2 in Part 1, we now transition from how this potent infostealer establishes a foothold to understanding its communication and data exfiltration capabilities. Part 2 will thoroughly examine LUMMAC.V2's network communication, from its initial C2 server reconnaissance and sophisticated data staging to the methods it employs for exfiltrating stolen sensitive information.
