Hello everyone,

I'm reaching out to see if anyone has encountered similar challenges or has insights to share regarding monitoring and alerting on the health of log ingestion in Google SecOps.

Here's a bit of context: We've set up a Cloud Function that queries our BigQuery table for information related to Google SecOps ingestion. We then import this data using the event import API : https://cloud.google.com/chronicle/docs/reference/rest/v1alpha/projects.locations.instances.events/import

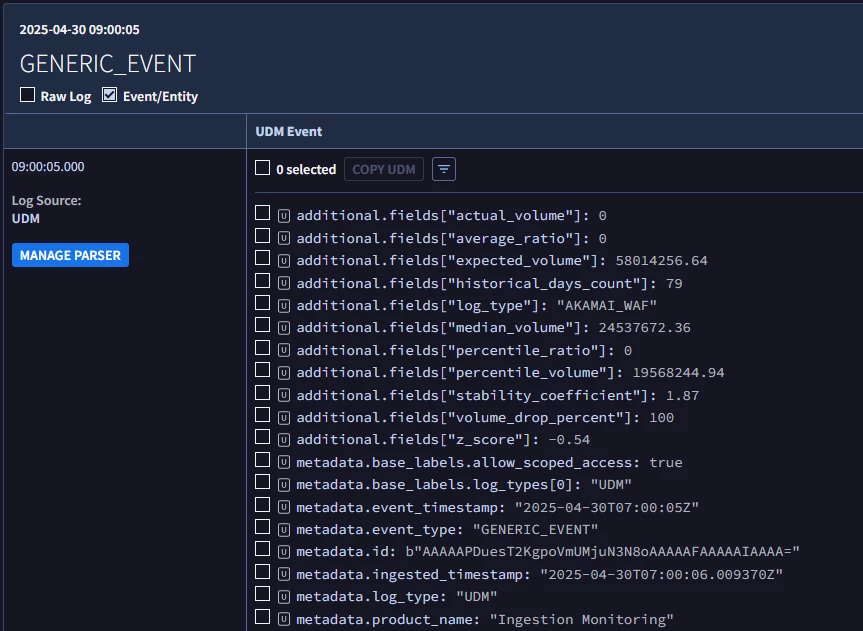

So far, everything works smoothly until we try to implement alerting rules on this data. The UDM events we are dealing with look like this :

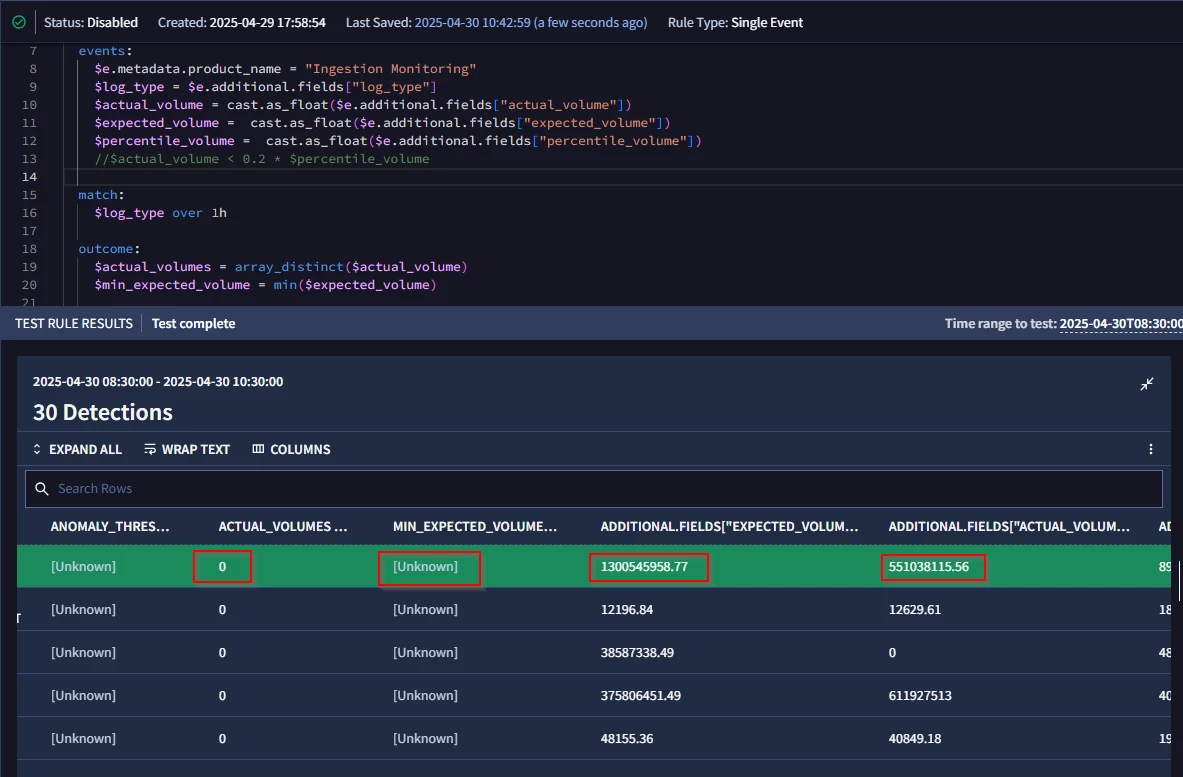

The useful information is placed in the additional fields of the UDM. However, it seems that the SIEM struggles to process these fields as strings or floats. For instance, I can't compare these numeric values, even if I cast them as floats beforehand :

I suspect this issue might be due to the use of additional fields, which are the only ones without a specified type in the API documentation (type: object): https://cloud.google.com/chronicle/docs/reference/rest/Shared.Types/UDM

  • Has anyone else faced this problem?
  • How do you handle numeric comparisons from additional fields?
  • Or could the issue be stemming from something else



Any advice would be greatly appreciated! Thank you!

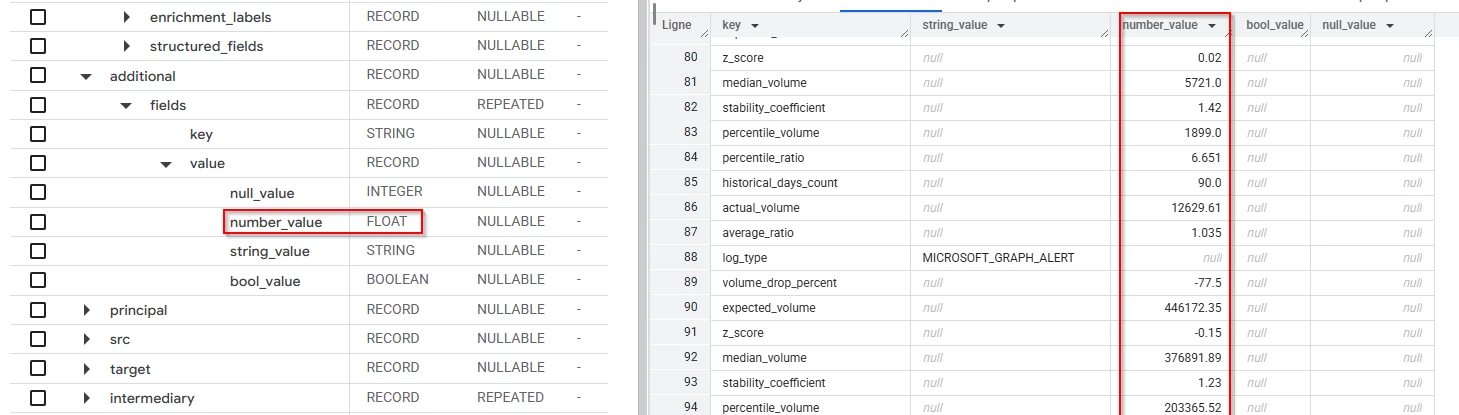

Interestingly, in the BigQuery export, these data are correctly typed as floats:

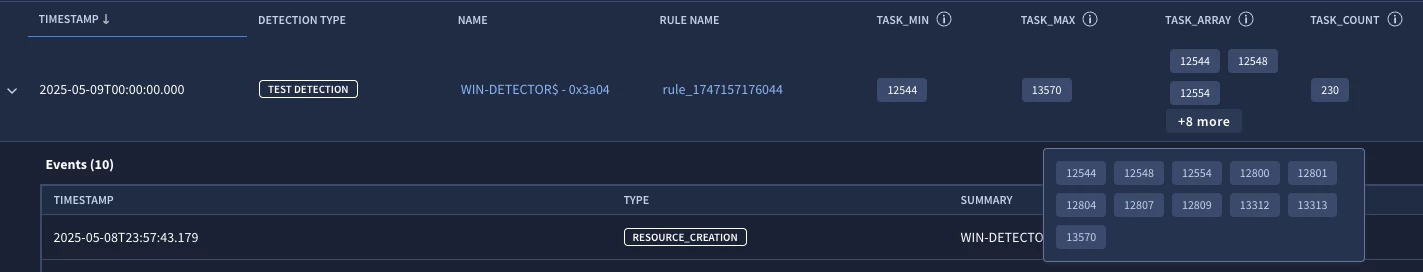

Have you tried using the cast.as_float in the outcome section when you are applying the aggregation function?  I am pulling the task from additional fields but it is a text string that is storing a number.



For my testing I found that I needed both of these lines in my events section to get my minimum value to be not 0, so try neither, one or both and see what you get.



$event.additional.fields["Task"] != "0"
$event.additional.fields["Task"] != ""



outcome:
$task_array = array_distinct($event.additional.fields["Task"])
$task_max = max(cast.as_float($event.additional.fields["Task"]))
$task_min = min(cast.as_float($event.additional.fields["Task"]))
$task_count = count($event.additional.fields["Task"])











Have you tried using the cast.as_float in the outcome section when you are applying the aggregation function?  I am pulling the task from additional fields but it is a text string that is storing a number.



For my testing I found that I needed both of these lines in my events section to get my minimum value to be not 0, so try neither, one or both and see what you get.



$event.additional.fields["Task"] != "0"
$event.additional.fields["Task"] != ""



outcome:
$task_array = array_distinct($event.additional.fields["Task"])
$task_max = max(cast.as_float($event.additional.fields["Task"]))
$task_min = min(cast.as_float($event.additional.fields["Task"]))
$task_count = count($event.additional.fields["Task"])











Hi,

Thank you very much for your detailed answer and for sharing your testing approach! I tried your suggestions, but unfortunately, the issue seems to be deeper.

Based

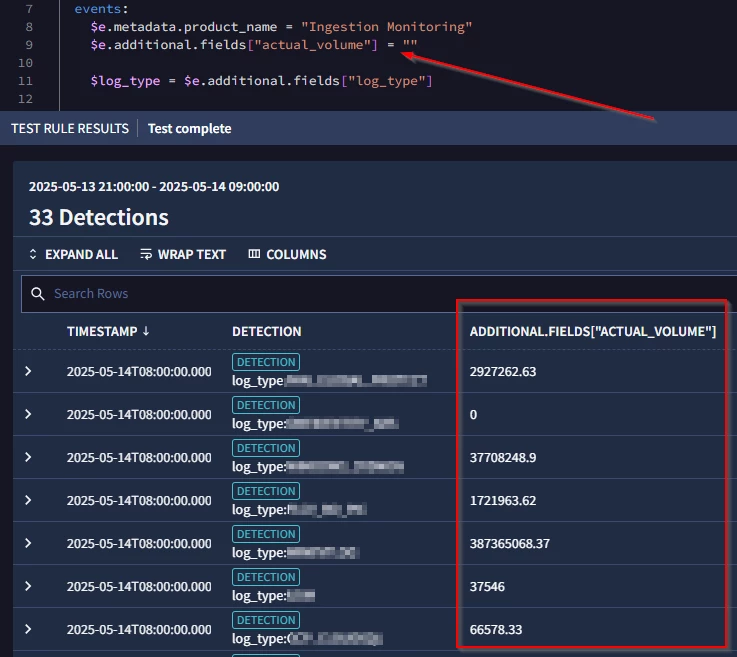

 on what you shared, I realized that all the strings in my case are actually equal to "", even though when I display these values, they appear different.

So, it looks like the problem is not just with the aggregation or casting, but rather with how the solution is handling or reading these values.


If you have any idea why this could happen, I would really appreciate your help. Thanks again for your time!

Best regards,


I don't have a solution to your problem inside SecOps but I just wanted to make sure you were aware the ingestion metrics are also inside GCP in metrics viewer.

You can write promql against the metrics data then use an alerting rule to send alerts (in GCP). I presume you are using cloud-functions run against the bigquery data because it's much easier to do stats calculations in general programming language but just wanted to make sure you (and future vieweres) were aware of the alternative approach. Good luck!






Hi,

Thank you very much for your detailed answer and for sharing your testing approach! I tried your suggestions, but unfortunately, the issue seems to be deeper.

Based
 on what you shared, I realized that all the strings in my case are actually equal to "", even though when I display these values, they appear different.

So, it looks like the problem is not just with the aggregation or casting, but rather with how the solution is handling or reading these values.


If you have any idea why this could happen, I would really appreciate your help. Thanks again for your time!

Best regards,


I find it odd that these values are showing up but you are specifying value being null. Is it possible that you have more than one key of the same name? If there is anything more to your rule than the screenshot snippets you provided that might provide a clue but understand if you can't share it.


Hi everyone,

For those who might find this helpful, I managed to work around this issue: It seems the additionals fields don't handle float casting correctly.

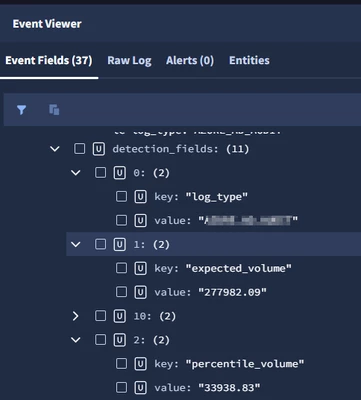

I was able to get my log type monitoring rule to work by using the
detection_fields instead, as they do handle the cast to float properly.



Hope this helps someone!
