Chronicle SOAR - unexpected behaviours in playbook views

  • August 9, 2024
  • 14 replies
  • 90 views

vanitharaj1208
Forum|alt.badge.img+14

Hi All,

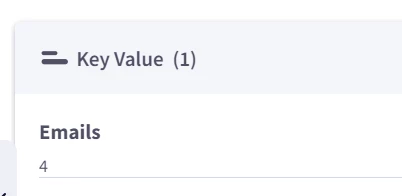

I have used set content value for a key "No. of emails deleted" and value is set to "count of events [execute udm query .events]" . and i used key-value widget to render it.

it works in my lab instance but not in client instance ?]



Why?

not only this field all fields (event fields, alert fields, action result etc)



Best answer by SoarAndy

@SoarAndy if count of event is 0 its returns this [GoogleChronicle_Execute UDM Query_1.JsonResult| "events" | count()]

Actually its should return 0, this is effecting my playbooks and views

how to add condition check to set the count to 0


Which Action?

I wonder if the Action is not outputting a JSON, therefore there is nothing to count, so the placeholder [] doesn't resolve

14 replies

Vik_S
Staff
Forum|alt.badge.img+4
  • Staff
  • August 9, 2024

@rupinderv is that something you could comment?


SoarAndy
Staff
Forum|alt.badge.img+12
  • Staff
  • August 9, 2024

Some comments on best practise tips for using Context keys

The key is indexed so please be proportionate in your usage.  e.g. do not store UUID or SHA256 as the key as this can impact system performance if you store millions. In your case it looks ok, but I thought to offer future advice.

If it works on one system, it should work on others.  I suggest build a mini test playbook that does SetContext, GetContext, and a widget. If it works, export it and import, that should show it works



vanitharaj1208
Forum|alt.badge.img+14

Hi all,

I have a Block

in the blcok i have first action

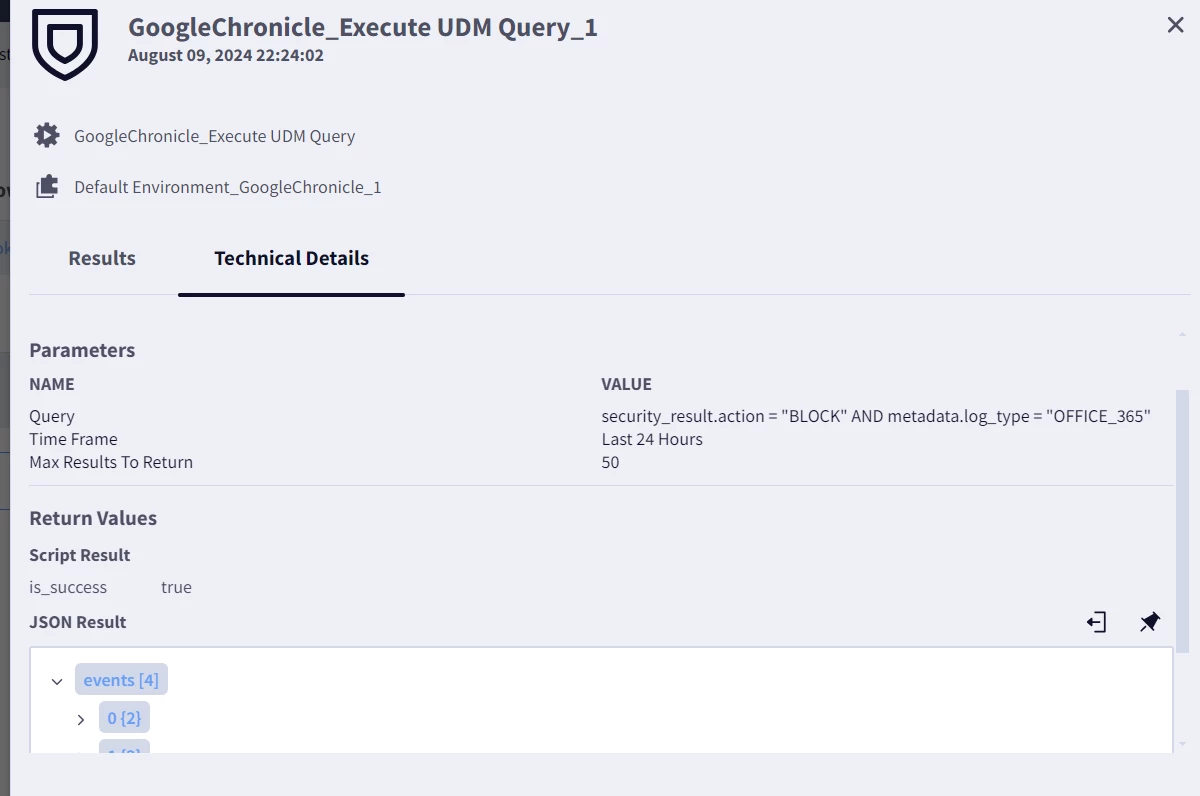

i want to fetch count of udm events in this case it is 4 right

i set context value of key count of events  as value [GoogleChronicle_Execute UDM Query_1.JsonResult| "events" | count()]

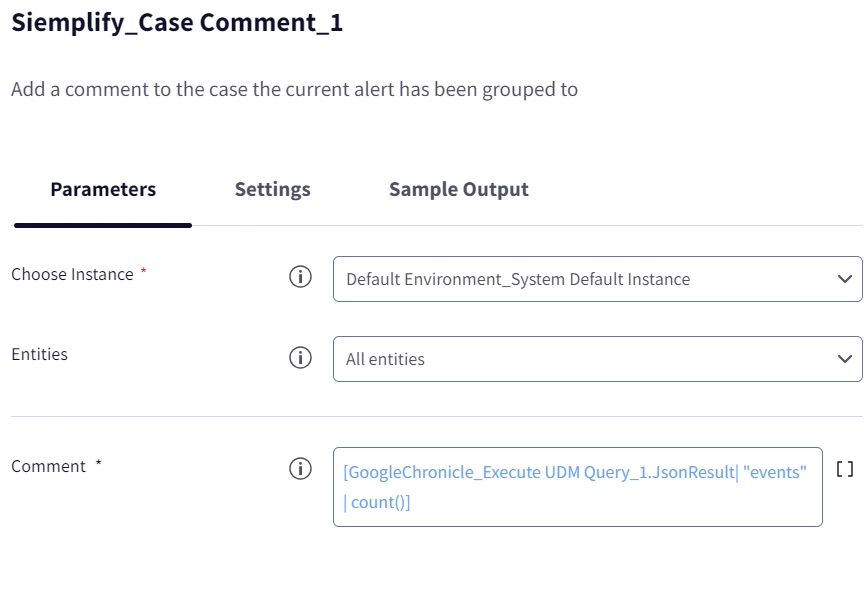

i tried to debugged using get context value /add comment it displays this placeholder instead of actual value  [GoogleChronicle_Execute UDM Query_1.JsonResult| "events" | count()]

it should be 4

i tested again it works in playbooks but not in blocks , i even checked the version of instances its same








SoarAndy
Staff
Forum|alt.badge.img+12
  • Staff
  • August 9, 2024

Hi all,

I have a Block

in the blcok i have first action

i want to fetch count of udm events in this case it is 4 right

i set context value of key count of events  as value [GoogleChronicle_Execute UDM Query_1.JsonResult| "events" | count()]

i tried to debugged using get context value /add comment it displays this placeholder instead of actual value  [GoogleChronicle_Execute UDM Query_1.JsonResult| "events" | count()]

it should be 4

i tested again it works in playbooks but not in blocks , i even checked the version of instances its same








The Block runs it's own scope, i.e. it does not have access to the data in the parent playbook that calls it.

You can pass the JSON as an input to the Block and count in there
Or you can count in the playbook, and pass the result (4) into the Block as an input variable


vanitharaj1208
Forum|alt.badge.img+14

@SoarAndy if count of event is 0 its returns this [GoogleChronicle_Execute UDM Query_1.JsonResult| "events" | count()]

Actually its should return 0, this is effecting my playbooks and views

how to add condition check to set the count to 0


SoarAndy
Staff
Forum|alt.badge.img+12
  • Staff
  • Answer
  • August 12, 2024

@SoarAndy if count of event is 0 its returns this [GoogleChronicle_Execute UDM Query_1.JsonResult| "events" | count()]

Actually its should return 0, this is effecting my playbooks and views

how to add condition check to set the count to 0


Which Action?

I wonder if the Action is not outputting a JSON, therefore there is nothing to count, so the placeholder [] doesn't resolve


vanitharaj1208
Forum|alt.badge.img+14

Which Action?

I wonder if the Action is not outputting a JSON, therefore there is nothing to count, so the placeholder [] doesn't resolve


Hi @SoarAndy @Vik_S ,

this is not resolved ,  even if count of event is >0 its returns this [GoogleChronicle_Execute UDM Query_1.JsonResult| "events" | count()]

Actually its should return count of events

i have raised a ticket from client side.


SoarAndy
Staff
Forum|alt.badge.img+12
  • Staff
  • December 17, 2024

Hi @SoarAndy @Vik_S ,

this is not resolved ,  even if count of event is >0 its returns this [GoogleChronicle_Execute UDM Query_1.JsonResult| "events" | count()]

Actually its should return count of events

i have raised a ticket from client side.


I checked the code.
Actions *should* output a JSON object, if no events were detected the output should be {} or [] depending. In this case a mistake means that "add_restuls_json" is not called.  This has been logged as a bug to the teams.

Until this is fixed I suggest a double condition

Condition 1 - if [ChronicleIUDM.JsonResult] starts with [Ch

This will validate if the placeholder remains as a string. If yes, then no events were detected. If no perform another condition

Condition 2 - if count() > 0

this condition, the one you want, is only tested AFTER we check if a JSON was present
HTH

Andy


vanitharaj1208
Forum|alt.badge.img+14

I checked the code.
Actions *should* output a JSON object, if no events were detected the output should be {} or [] depending. In this case a mistake means that "add_restuls_json" is not called.  This has been logged as a bug to the teams.

Until this is fixed I suggest a double condition

Condition 1 - if [ChronicleIUDM.JsonResult] starts with [Ch

This will validate if the placeholder remains as a string. If yes, then no events were detected. If no perform another condition

Condition 2 - if count() > 0

this condition, the one you want, is only tested AFTER we check if a JSON was present
HTH

Andy


Thank you for reply.. By when issue/bug will be solved?


SoarAndy
Staff
Forum|alt.badge.img+12
  • Staff
  • December 18, 2024

Thank you for reply.. By when issue/bug will be solved?


Given there is a workaround (above) I don't it is currently prioritised, so I would use the above workaround for now


vanitharaj1208
Forum|alt.badge.img+14

Given there is a workaround (above) I don't it is currently prioritised, so I would use the above workaround for now


HI @SoarAndy , i have found why this issue is happening... ill try to recreate the issue and confirm you ..




vanitharaj1208
Forum|alt.badge.img+14
  • Author
  • Silver 2
  • December 23, 2024

HI @SoarAndy , i have found why this issue is happening... ill try to recreate the issue and confirm you ..




Hi @SoarAndy @Vik_S , Thank you ...

The mistake was naming the action .. if we use () in the action name it doesn't  work.


jasonsigman
Forum|alt.badge.img+2
  • Bronze 1
  • January 17, 2025

Given there is a workaround (above) I don't it is currently prioritised, so I would use the above workaround for now


How is this not a priority? If an action is completed success ( with or without output) the placeholder needs to return something. If you have multiple actions in parallel are you expected to a have a if else for each single one even if they are going back to one single block? That sounds incredibly bloated inside a playbook and would require a large re-write when the bug is fixed. I am new to the system so would love some insight into this.


SoarAndy
Staff
Forum|alt.badge.img+12
  • Staff
  • January 20, 2025

How is this not a priority? If an action is completed success ( with or without output) the placeholder needs to return something. If you have multiple actions in parallel are you expected to a have a if else for each single one even if they are going back to one single block? That sounds incredibly bloated inside a playbook and would require a large re-write when the bug is fixed. I am new to the system so would love some insight into this.


Hi Jason,

This is not a platform issue, and the majority of Actions correctly output an empty json, however unfortunately in the thousands of Actions we have a few do have this behaviour and only those would need the workaround.
If you find another please let me know ASAP and I will log to the marketplace team. Even the requested change isn't highly prioritised (I don't know the calculation system) it might get pulled in if any other works are planned on an integration so it's always worth logging as soon as possible.
HTH?
Andy
