Detection query inside a UDM rule

Can you share the full rule? Looks like line 27 is called out with the error, but do not see it. You can use detection data source in a rule, syntax is here - https://docs.cloud.google.com/chronicle/docs/detection/composite-detections#:~:text=the%20composite%20chain.-,Example,-%3A

Example:

$d.detection.detection.rule_name = /SCC: Custom Modules: Configurable Bad Domain/

​@cmorris sure, this is the basic detection with current error:

rule dev_test_detection {
  meta:
    author = "test"

  events:
    // https://www.googlecloudcommunity.com/gc/Community-Blog/Monitoring-for-Unexpected-Rule-Changes-in-Google-Security/ba-p/810902

    $detections.metadata.log_type = "GCP_CLOUDAUDIT"
    $detections.target.resource.attribute.labels["rc_service"] = "chronicle.googleapis.com"
    $detections.principal.user.attribute.labels["authorization_granted"] = "true"

    $d.detection.detection.rule_name != /prod_/
    (
        $detections.metadata.product_event_type = "google.cloud.chronicle.v1alpha.RuleService.CreateRule" or
        $detections.metadata.product_event_type = "google.cloud.chronicle.v1alpha.RuleService.UpdateRule" or
        $detections.metadata.product_event_type = "google.cloud.chronicle.v1alpha.RuleService.DeleteRule"
    )

  condition:
    $detections and $d
}

Can you try the below? I created a join on line 11, believe it should work now. You may want to change the variables I am using, feel free to do so, I just wanted something with the right syntax for the join and match sections as an example.


rule dev_test_detection {
  meta:
    author = "test"

  events:
    $e.metadata.log_type = "GCP_CLOUDAUDIT"
    $e.target.resource.attribute.labels["rc_service"] = "chronicle.googleapis.com"
    $e.principal.user.attribute.labels["authorization_granted"] = "true"

    $host = $e.principal.hostname
    $e.principal.hostname = $d.detection.collection_elements.references.event.principal.hostname

    $d.detection.detection.rule_name != /prod_/
    (
        $e.metadata.product_event_type = "google.cloud.chronicle.v1alpha.RuleService.CreateRule" or
        $e.metadata.product_event_type = "google.cloud.chronicle.v1alpha.RuleService.UpdateRule" or
        $e.metadata.product_event_type = "google.cloud.chronicle.v1alpha.RuleService.DeleteRule"
    )
  match:
    $host over 1h

  condition:
    $e and $d
}

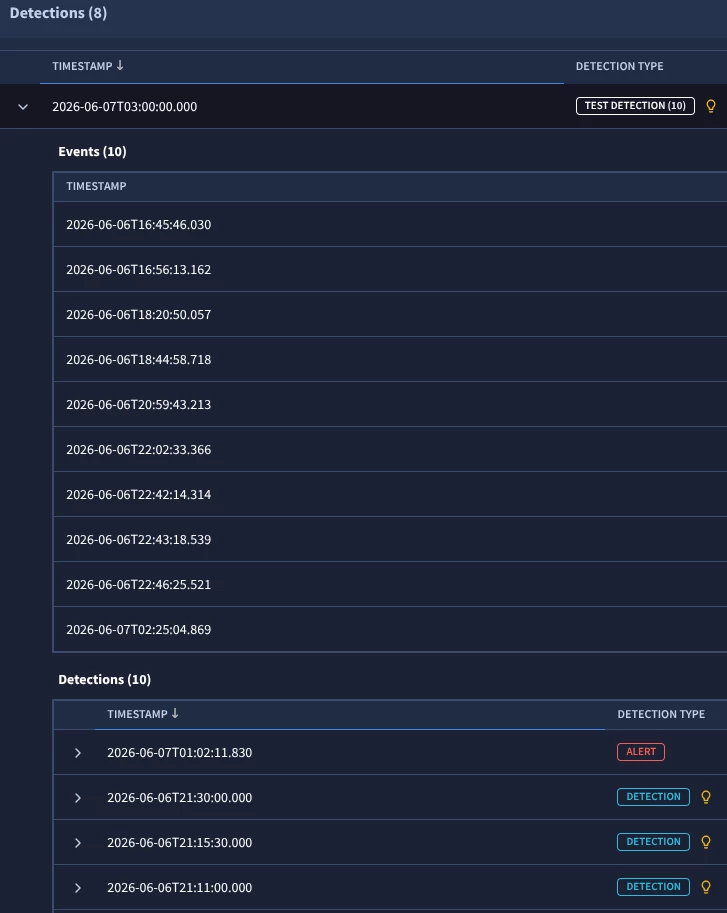

​@cmorris it runs but it doesn’t show any data. The hostname field does not exist in the logs.

I tried modifying it to principal.user.user_display_name but that also returns an empty results table.

What’s the use case? Are you looking to fire on two distinct events that occur? Ex. Variable $e represents a raw UDM log event (a GCP Cloud Audit log), and variable $d represents a Detection event. Or are you trying to create a detection of a detection?

I get results back with this, which I modified, just to account for the data in my tenant:

rule dev_test_detection {
  meta:
    author = "test"
  events:
    $e.metadata.log_type = "GCP_CLOUDAUDIT"
    $e.target.resource.attribute.labels["rc_service"] = "chronicle.googleapis.com"
    $e.principal.user.attribute.labels["authorization_granted"] = "true"
    $user = $e.principal.user.email_addresses
    $e.principal.hostname = $d.detection.collection_elements.references.event.principal.hostname
    $d.detection.detection.rule_name != /prod_/
    $e.metadata.product_event_type = /google.cloud.chronicle/
  match:
    $user over 1d
  condition:
    $e and $d
}

This focuses on the distinct events - UDM and detection.

If you just want a detection of a detection, we can do something like this:

rule dev_test_detection_change_nojoin {
  meta:
    author = "test"

  events:
    $host = $e.detection.collection_elements.references.event.principal.hostname
    $e.detection.collection_elements.references.event.metadata.log_type != "GCP_CLOUDAUDIT"
    $e.detection.collection_elements.references.event.target.resource.attribute.labels["rc_service"] = "chronicle.googleapis.com"
    $e.detection.collection_elements.references.event.principal.user.attribute.labels["authorization_granted"] = "true"

    (
        $e.detection.collection_elements.references.event.metadata.product_event_type = "google.cloud.chronicle.v1alpha.RuleService.CreateRule" or
        $e.detection.collection_elements.references.event.metadata.product_event_type = "google.cloud.chronicle.v1alpha.RuleService.UpdateRule" or
        $e.detection.collection_elements.references.event.metadata.product_event_type = "google.cloud.chronicle.v1alpha.RuleService.DeleteRule"
    )

    $e.detection.detection.rule_name != /prod_/

  match:
    $host over 1h

  condition:
    $e
}

The use case is based on this: https://www.googlecloudcommunity.com/gc/Community-Blog/Monitoring-for-Unexpected-Rule-Changes-in-Google-Security/ba-p/810902

• If someone modifies a detection, trigger an alert
• Our use case takes it slightly further and only looks to trigger for rules starting with prod_ or any detection that has alerting turned off

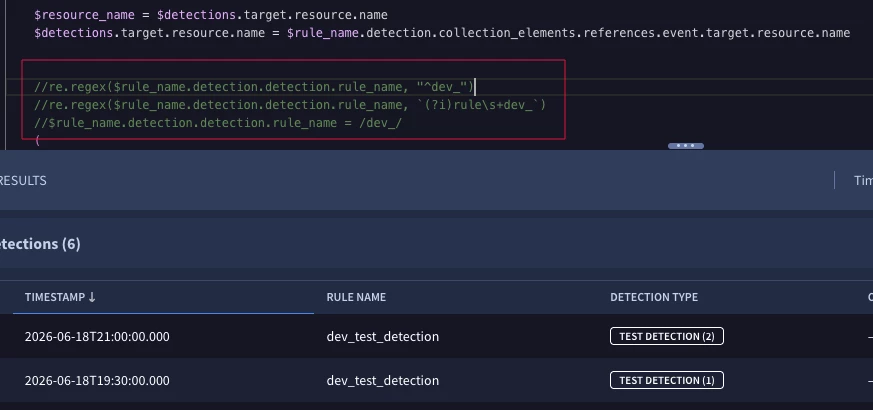

When I modify your query to:


$resource_name = $detections.target.resource.name
    $detections.target.resource.name = $rule_name.detection.collection_elements.references.event.target.resource.name

Then I get results, but the regex queries for detection.detection.rule_name do not work, and I’m now trying to figure out if the detection.detection field is incorrect or if there is another field that I need to query:

I think you should be able to modify the rule from the blog post without needing a composite detection as the rule name is parsed to security_result.associations.name.

Rule:

rule google_secops_rule_modified_or_deleted_v2 {

  meta:
    author = "Google Cloud Security"
    description = "Detects changes to rules in Google SecOps."
    assumption = "Google SecOps is ingesting Google Cloud logs. Reference: https://cloud.google.com/chronicle/docs/ingestion/cloud/ingest-gcp-logs"
    type = "alert"
    severity = "Info"
    priority = "Info"
    platform = "Google SecOps"
    data_source = "gcp cloud audit"

  events:
    $secops.metadata.vendor_name = "Google Cloud Platform"
    $secops.metadata.product_name = "Google Cloud Platform"
    $secops.metadata.product_event_type = /CreateRule|UpdateRule|UpdateRuleDeployment|DeleteRule/
    $secops.security_result.action = "ALLOW"
    $secops.security_result.associations.name = /dev_/
    $secops.principal.user.userid = $userid

  match:
    $userid over 30m

  outcome:
    $risk_score = max(10)
    $rule_name = array_distinct($secops.security_result.associations.name)
    $product_event_type = array_distinct($secops.metadata.product_event_type)
    $security_result_summary = array_distinct($secops.security_result.action)
    $event_count = count_distinct($secops.metadata.id)
    $target_resource_name = array_distinct($secops.target.resource.name)
    $principal_user_userid = array_distinct($secops.principal.user.userid)
    $principal_ip = array_distinct($secops.principal.ip)
    $principal_ip_country = array_distinct($secops.principal.ip_geo_artifact.location.country_or_region)
    $principal_ip_state = array_distinct($secops.principal.ip_geo_artifact.location.state)
    $principal_ip_city = array_distinct($secops.principal.location.city)

  condition:
    $secops
}

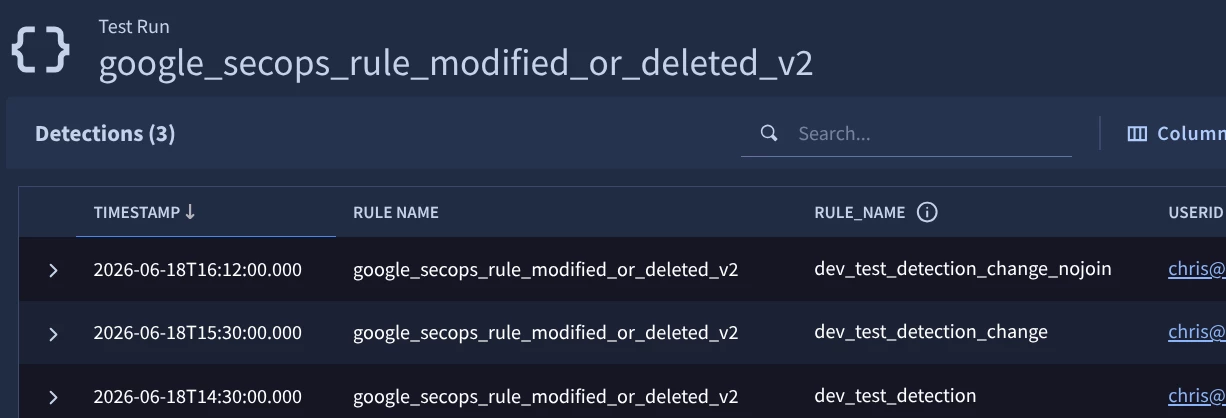

I used  $secops.security_result.associations.name = /dev_/ as these rules I am testing with include that. The test returns my changes to the dev rules only.

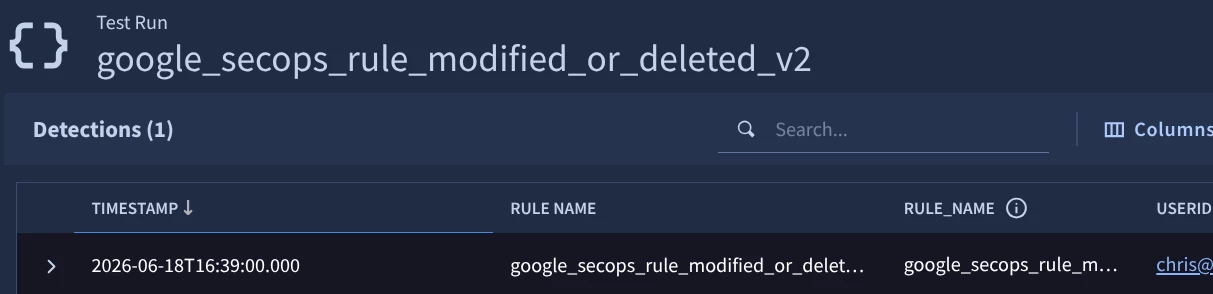

I then changed the rule to use $secops.security_result.associations.name = /google/ - the name of the rule that is tracking rule changes and I only received a detection for changes to this rule, rather than dev rules.

Hi ​@cmorris,

That was what I was trying initially, but I ran into the issue where the security_result.associations.name field didn’t always populate, e.g. for the google.cloud.chronicle.v1alpha.RuleService.UpdateRuleDeployment event type, the value isn’t in the logs:

It also only populated ~70% of the time for the google.cloud.chronicle.v1alpha.RuleService.UpdateRule event type.
