Displaying Case Attachments as a HTML view Downloadable Table (with correct file extensions)

Post inspired by recent struggle with csv/pdf output generation and hastle it take to find output in wall to get them.

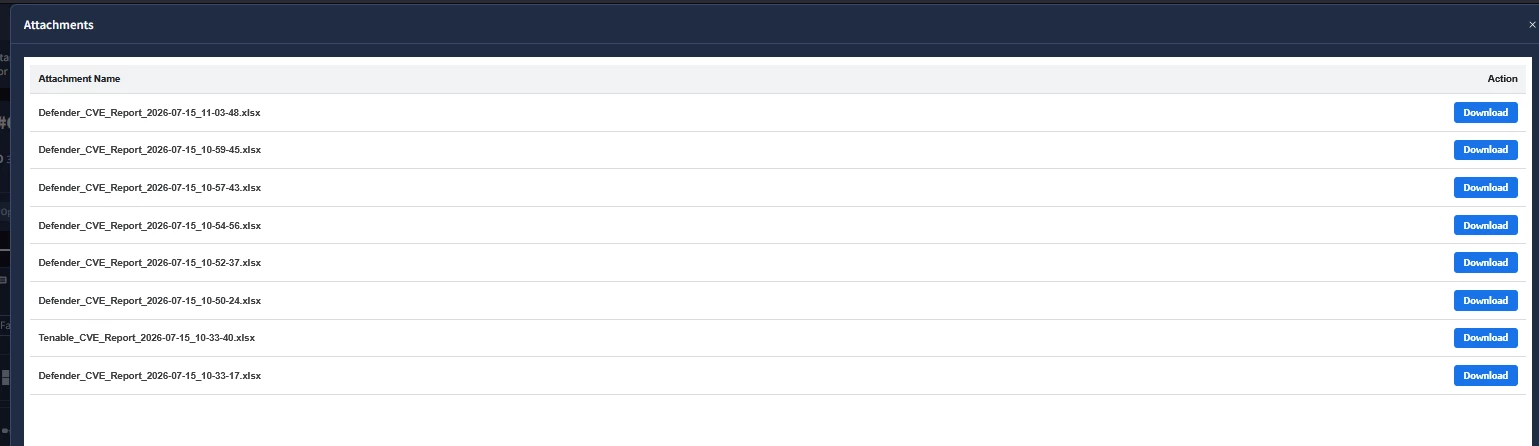

Preview:

Here's the full working setup, including a few gotchas that cost me some time.

Playbook steps:

1. FileUtilities → Get Attachment — pulls all attachments from the case (returns a list, even for a single file, with evidenceName, fileType, base64_blob, etc.)
2. TemplateEngine → Render Template — takes the JSON from step 1 and renders it into HTML using the Jinja template below. Email template -skip-

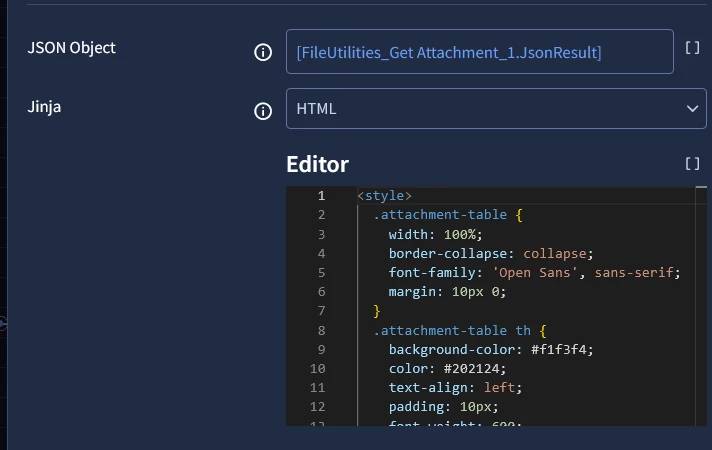

Configuration for step 2:

• JSON Object: [FileUtilities_Get Attachment_1.JsonResult]
  • ⚠️ If the field auto-populates with a trailing {} after the placeholder, remove it — it breaks JSON parsing and throws JSONDecodeError: Extra data.
• Jinja (dropdown): HTML
• Editor: paste the template below — this is the only field that actually needs your code
• Template (dropdown further down, e.g. "Email Template"): leave this alone. It's a separate, unrelated mechanism (pre-built email templates) and has no effect on this output.
• Include Case Data: uncheck this if you don't need the full case context passed in — it adds unnecessary overhead and may slow down or affect large cases.

In the HTML widget (View settings), just reference the render result:

[TemplateEngine_Render Template_1.JsonResult.html_output]

(the exact key name may vary — check your action's JSON Result if the widget stays blank). OR set context value and use global case.YOURNAME value.

The template:

<style>
  .attachment-table {
    width: 100%;
    border-collapse: collapse;
    font-family: 'Open Sans', sans-serif;
    margin: 10px 0;
  }
  .attachment-table th {
    background-color: #f1f3f4;
    color: #202124;
    text-align: left;
    padding: 10px;
    font-weight: 600;
    border-bottom: 2px solid #dadce0;
    font-size: 12px;
  }
  .attachment-table td {
    padding: 10px;
    border-bottom: 1px solid #dadce0;
    font-size: 12px;
    color: #3c4043;
  }
  .download-btn {
    background-color: #1a73e8;
    color: white;
    border: none;
    padding: 6px 12px;
    border-radius: 4px;
    cursor: pointer;
    font-weight: bold;
    font-size: 11px;
    text-decoration: none;
    display: inline-block;
    transition: background-color 0.2s;
  }
  .download-btn:hover {
    background-color: #1557b0;
  }
</style>
<table class="attachment-table">
  <thead>
    <tr>
      <th>Attachment Name</th>
      <th>Type</th>
      <th>Action</th>
    </tr>
  </thead>
  <tbody>
    {% if base64_blob %}
      <tr>
        <td><strong>{{ evidenceName }}{{ fileType }}</strong></td>
        <td>{{ fileType | default('.file') | replace('.', '') | upper }}</td>
        <td>
          <button class="download-btn" onclick="downloadBlob('{{ base64_blob }}', '{{ evidenceName }}{{ fileType }}')">
            Download
          </button>
        </td>
      </tr>
    {% elif attachments %}
      {% for attachment in attachments %}
      <tr>
        <td><strong>{{ attachment.evidenceName }}{{ attachment.fileType }}</strong></td>
        <td>{{ attachment.fileType | default('.file') | replace('.', '') | upper }}</td>
        <td>
          <button class="download-btn" onclick="downloadBlob('{{ attachment.base64_blob }}', '{{ attachment.evidenceName }}{{ attachment.fileType }}')">
            Download
          </button>
        </td>
      </tr>
      {% endfor %}
    {% else %}
      <tr>
        <td colspan="3" style="text-align: center; color: #70757a;">No attachment data found in JSON.</td>
      </tr>
    {% endif %}
  </tbody>
</table>
<script>
function downloadBlob(base64, filename) {
  try {
    const byteCharacters = atob(base64);
    const byteNumbers = new Array(byteCharacters.length);
    for (let i = 0; i < byteCharacters.length; i++) {
      byteNumbers[i] = byteCharacters.charCodeAt(i);
    }
    const byteArray = new Uint8Array(byteNumbers);
    const blob = new Blob([byteArray], { type: 'application/octet-stream' });

    const link = document.createElement('a');
    link.href = window.URL.createObjectURL(blob);
    link.download = filename;
    document.body.appendChild(link);
    link.click();

    document.body.removeChild(link);
    window.URL.revokeObjectURL(link.href);
  } catch (e) {
    alert("Error downloading file: " + e.message);
  }
}
</script>

Why this approach:

• Files are decoded from base64 to a Blob only on click (not upfront), so the browser isn't forced to hold decoded binary data for every row on page load.
• link.download includes the file extension ({{ evidenceName }}{{ fileType }}) — without this, files download as generic files with no extension and the OS won't know how to open them.

Known limitation: as mentioned in the original thread, this isn't recommended for large files — long base64 strings in the HTML can slow down rendering or the browser. For very large attachments, consider adding a size check to skip embedding and just show a "too large, use Case Wall" message instead.

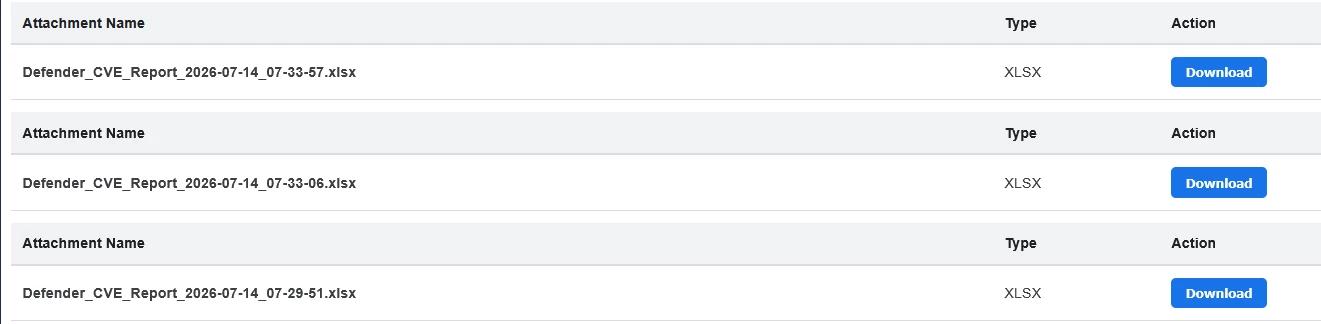

How it looks like:

Hope this will help to save some time for you folks!
