Solved

I want to create an exclusion condition for an alert based on the values of multiple fields using YARA-L and a data table

  • Jul 28, 2025 4:01 PM UTC
  • 6 replies
  • 403 views

keiS
Forum|alt.badge.img+4

I need to create an exclusion setting based on the values of multiple fields in a YARA-L rule.

I've been trying and erroring using a data table, but I'm not getting anywhere so I'd appreciate any advice.

○What I want to do
If principal.user.email_addresses is aaa@sample.com and principal.ip is x.x.x.x, do not send an alert.

(I want these two fields to be an and condition, not an or condition)

If this cannot be done with a data table, could you tell me if there is another way to do it?

I look forward to your reply.



rule sample_rule {
meta:
author = "sample"
description = "testrule"
severity = "MEDIUM"

events:

$e.metadata.log_type = "GCP_CLOUDAUDIT"
($e.principal.user.email_addresses != %sample_rule.useremailaddresses or $e.principal.ip != %sample_rule.ip)

$user_id_for_match = $e.principal.user.userid

match:
$user_id_for_match over 1h

condition:
$e
}



Best answer by AbdElHafez



You will need to define the data table like this ;

ipEmail,ref
0.0.0.0_myemail@myexample.com ,GCP_CLOUDAUDIT

The first field is both ip and email concatenated with a “_” , the second field is any dummy string

The rule should be like this ;

rule sample_rule {

meta:

author = "sample"

description = "testrule"

severity = "MEDIUM"

events:

$e.metadata.log_type = "GCP_CLOUDAUDIT"

$user_id_for_match = $e.principal.user.userid



$e.principal.ip != ""

$e.principal.user.email_addresses !=""

strings.concat($e.principal.ip,"_",$e.principal.user.email_addresses) = $ipEmailPair



%sample_rule3.ref = $e.metadata.log_type

$ipEmailPair != %sample_rule3.ipEmail



match:

$user_id_for_match over 1h

outcome:

$ipEmailPair_ = array_distinct($ipEmailPair)



condition:

$e

}

For Not AND (NAND) Exclusion ;

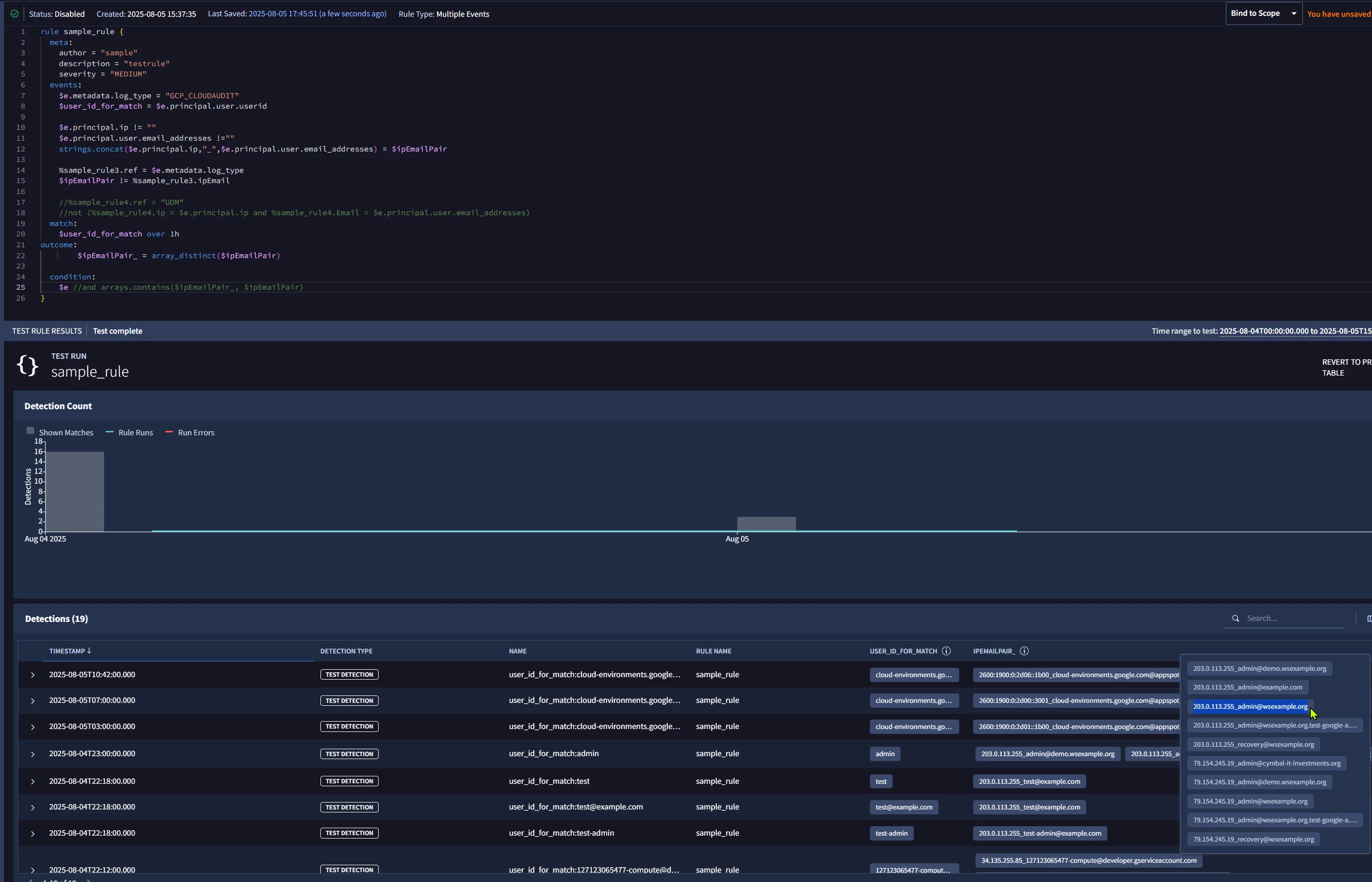

However as you could see, because both principal.ip and principal.user.email_addresses are repeated fields and you are matching using principal.user.userid so each user id will have a multi-list of IP-emails pairs, the rule will trigger if there is at least one pair that is not in your data table.

i.e. The highlighted alert had 10 pairs, 9 of them were not in the data table so the rule triggered.

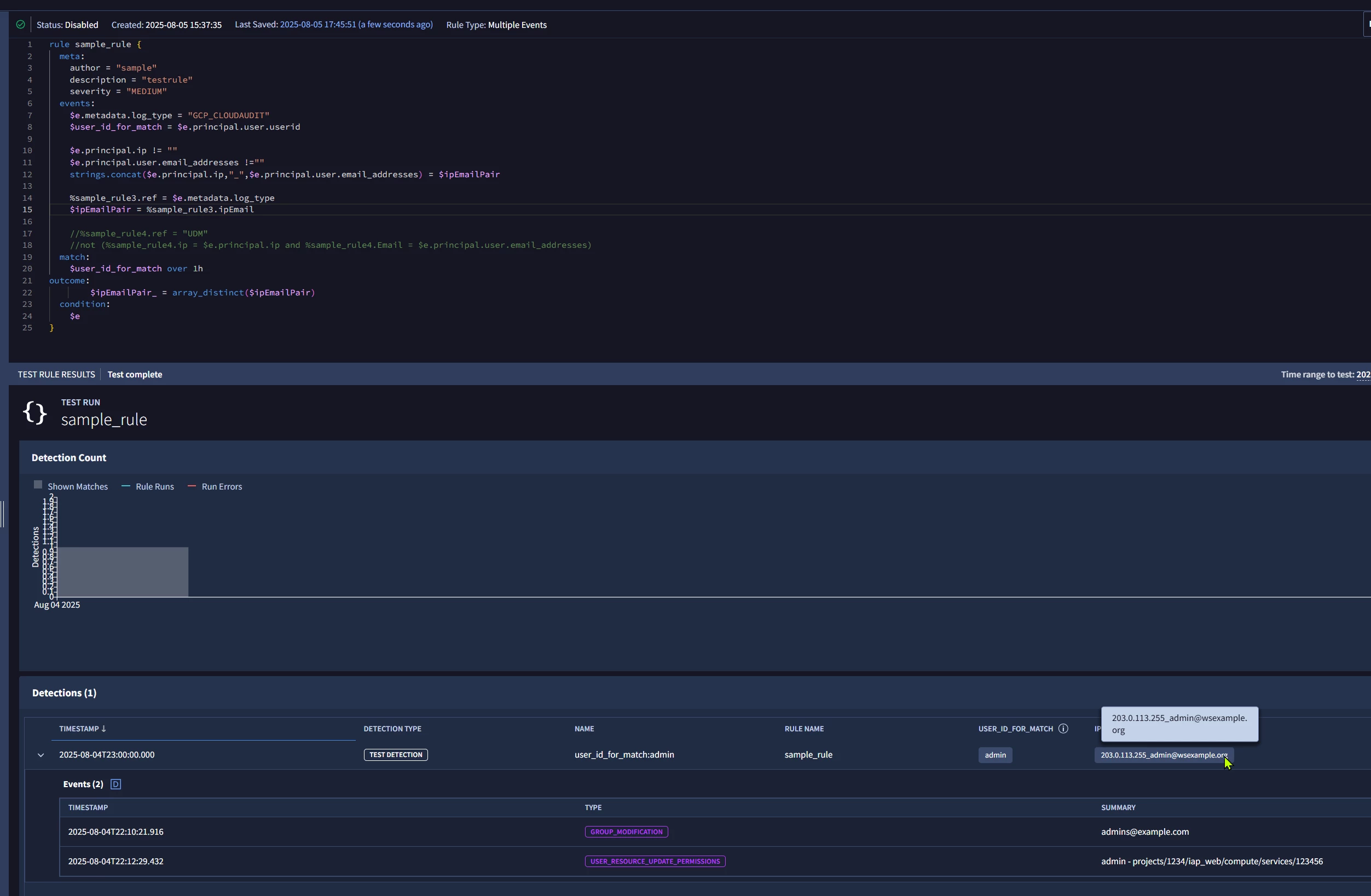

For Equal Matching ; The rule will work as expected


Concatenating them in the parser should work but it won’t be a neat solution and will have the same effect.

View original

6 replies

AbdElHafez
Forum|alt.badge.img+12
  • Bronze 5
  • Aug 1, 2025 5:57 PM UTC

You could concatenate both strings in 1-field then use the concatenated field with any condition.


keiS
Forum|alt.badge.img+4
  • Author
  • Bronze 5
  • Aug 5, 2025 12:12 PM UTC

Thank you for your reply.
Let me confirm what you said.
Does that mean defining field joins in the parser? Or can they be joined using rules?


AbdElHafez
Forum|alt.badge.img+12
  • Bronze 5
  • Answer
  • Aug 5, 2025 6:10 PM UTC



You will need to define the data table like this ;

ipEmail,ref
0.0.0.0_myemail@myexample.com ,GCP_CLOUDAUDIT

The first field is both ip and email concatenated with a “_” , the second field is any dummy string

The rule should be like this ;

rule sample_rule {

meta:

author = "sample"

description = "testrule"

severity = "MEDIUM"

events:

$e.metadata.log_type = "GCP_CLOUDAUDIT"

$user_id_for_match = $e.principal.user.userid



$e.principal.ip != ""

$e.principal.user.email_addresses !=""

strings.concat($e.principal.ip,"_",$e.principal.user.email_addresses) = $ipEmailPair



%sample_rule3.ref = $e.metadata.log_type

$ipEmailPair != %sample_rule3.ipEmail



match:

$user_id_for_match over 1h

outcome:

$ipEmailPair_ = array_distinct($ipEmailPair)



condition:

$e

}

For Not AND (NAND) Exclusion ;

However as you could see, because both principal.ip and principal.user.email_addresses are repeated fields and you are matching using principal.user.userid so each user id will have a multi-list of IP-emails pairs, the rule will trigger if there is at least one pair that is not in your data table.

i.e. The highlighted alert had 10 pairs, 9 of them were not in the data table so the rule triggered.


For Equal Matching ; The rule will work as expected


Concatenating them in the parser should work but it won’t be a neat solution and will have the same effect.


AbdElHafez
Forum|alt.badge.img+12
  • Bronze 5
  • Aug 5, 2025 6:39 PM UTC

You could define the table as ;

ipEmail ref
ip1_email1 GCP_CLOUDAUDIT

First column will be the ip-email pair concatenated with “_”, the other column is any dummy value.

The rule should be like ;


rule sample_rule {

  meta:

  events:

    $e.metadata.log_type = "GCP_CLOUDAUDIT"

    $user_id_for_match = $e.principal.user.userid

    $e.principal.ip != ""

    $e.principal.user.email_addresses !=""

    strings.concat($e.principal.ip[0],"_",$e.principal.user.email_addresses[0]) = $ipEmailPair

    %sample_rule3.ref = $e.metadata.log_type //dummy match just to allow “!=” operator later

    $ipEmailPair != %sample_rule3.ipEmail

  match:

    $user_id_for_match over 1h

outcome:

        $ipEmailPair_ = array_distinct($ipEmailPair)

  condition:

    $e
}



The rule will generate a list of IP Email pairs ($ipEmailPair_) per user id ($user_id_for_match), but also the rule will trigger if the list $ipEmailPair_ have any pairs that are not in the table.


i.e. if you added ip1_email1,”GCP_CLOUDAUDIT” in that table, the rule will trigger if a user id user1 has ip2_email2 and ip1_email1pairs within the hour since ip2_email2 pair is not in the data table.


keiS
Forum|alt.badge.img+4
  • Author
  • Bronze 5
  • Aug 7, 2025 10:18 AM UTC

Thank you for your reply.
I will try to verify the information you provided!
I will contact you once the verification is complete.


keiS
Forum|alt.badge.img+4
  • Author
  • Bronze 5
  • Aug 8, 2025 8:47 AM UTC

I tested it and was able to achieve what I wanted to do.

Thank you for your response!
