Good Day,
I have configured a Ubuntu Server to send Auditd and syslog logs using local BindPlane Agent installed on this same system. When I view the RAW logs in SecOps its showing odd characters or Unicode.
/h���file�1/var/log/remote/msg/ABr-dev01-gateway/AB_FLOW.log�log�qMar 2 16:06:03 ABr-mtl01-gateway AB_FLOW: AB_FLOW_SESSION_CREATE: session created 10.150.202.52/46768->10.55.182.88/28015 0x0 None 0.0.0.0/0->10.55.182.88/28015 0x0 N/A N/A N/A N/A 6 default-policy-logical-system-00 SL-PUBLIC SID-Workload-OCP-Storage-169-Segment-Zone 12886267255 N/A(N/A) ae1.0 UNKNOWN UNKNOWN UNKNOWN N/A N/A -1 N/A N/A N/A Off root N/A N/A N/A N/A���gā�
C�����file�1/var/log/remote/msg/ABr-dev01-gateway/AB_FLOW.log�log�zMar 2 16:05:20 ABr-mtl01-gateway AB_FLOW: AB_FLOW_SESSION_CREATE: session created 10.185.84/32769->10.1.1.245/443 0x0 junos-https 10.55.185.84/32769->10.1.1.245/443 0x0 N/A N/A N/A N/A 6 Allow-ABC-Management-Access-To-External-URLs Management-Public-OCT-Zone SL-PUBLIC 12886678565 N/A(N/A) ae1.787 UNKNOWN UNKNOWN UNKNOWN N/A N/A -1 N/A N/A N/A Off root N/A N/A N/A N/A���gā�
If I cheche the /etc/audit/audit.conf on the Linux server log_format = ENRCIHED
I am using the following config.yaml file for the bindplane agent:
receivers:
tcplog:
# Replace the below port <54525> and IP <0.0.0.0> with your specific values
listen_address: "127.0.0.1:5140"
exporters:
chronicle/chronicle_w_labels:
compression: gzip
# Adjust the creds location below according the placement of the credentials file you downloaded
creds: '{ INSERT SECOPS CREDS DATA HERE}'
# Replace <customer_id> below with your actual ID that you copied
customer_id: <Cusomter ID>
endpoint: alachiteingestion-pa.googleapis.com
# You can apply ingestion labels below as preferred
ingestion_labels:
log_type: AUDITD
namespace: auditd
raw_log_field: body
service:
pipelines:
logs/source0__chronicle_w_labels-0:
receivers:
- tcplog
exporters:
- chronicle/chronicle_w_labels

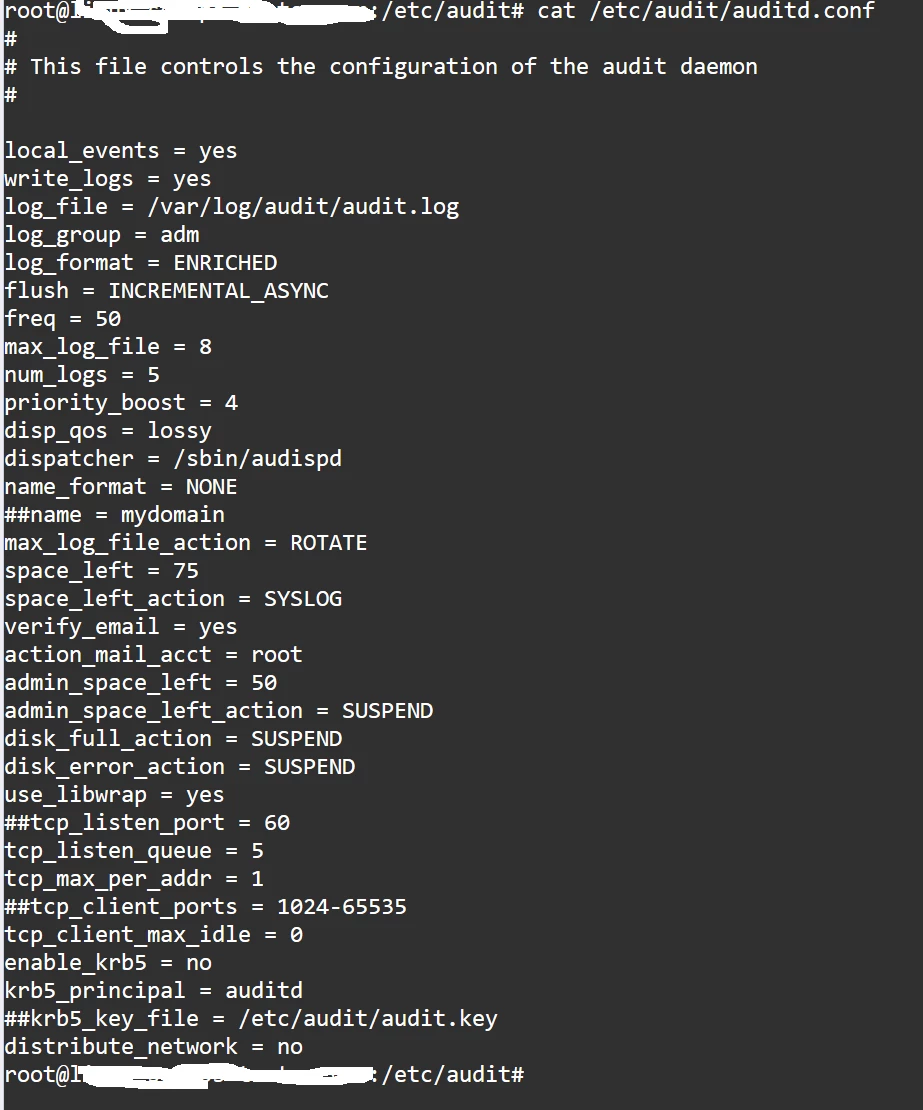

/etc/audit/auditd.conf
Is there a setting I am missing here in the config? or could it be something related to the audit.conf file?
