Solved

Need Help with the Parser grok pattern

  • September 8, 2025
  • 6 replies
  • 113 views
ayush_gupta_oak
Forum|alt.badge.img+4



# Product:  Web Access
# Category: Custom - HTTP Access Parser
# Last Updated: 08-Sep-2025
# Author: Ayush Gupta
# Version: 0.1
#
# Fields Mapped to UDM (ACCESS LOGS ONLY)
# metadata.event_timestamp    ← timestamp (from [01/Sep/2025:07:20:09 +0000])
# metadata.event_type         ← GENERIC_EVENT
# network.application_protocol← HTTP
# principal.ip                ← client_ip
# principal.platform          ← user_agent (client device info)
# intermediary.hostname       ← observer_id (web server instance)
# target.hostname             ← vhost
# target.url                  ← http://{vhost}{request_path}
# network.http.method         ← http_method
# network.http.response_code  ← status
# network.http.user_agent     ← user_agent
# network.http.referral_url   ← referrer (when present)

filter {

  # Initialize working variables
  mutate {
    replace => {
      "observer_id"   => ""
      "client_ip"     => ""
      "vhost"         => ""
      "ident"         => ""
      "ts"            => ""
      "http_method"   => ""
      "request_path"  => ""
      "http_version"  => ""
      "status"        => ""
      "bytes"         => ""
      "referrer"      => ""
      "user_agent"    => ""
      "req_url"       => ""
    }
  }

  grok {
    match => {
      "message" => [
        '(%{DATA:observer_id} %{IP:client_ip} %{HOSTNAME:vhost} %{DATA:ident} \[%{HTTPDATE:ts}\] "%{WORD:http_method} %{DATA:request_path} HTTP/%{NUMBER:http_version}" %{INT:status} %{INT:bytes} "%{DATA:referrer}" "%{DATA:user_agent}")'
      ]
    }
    overwrite => ["observer_id","client_ip","vhost","ident","ts","http_method","request_path","http_version","status","bytes","referrer","user_agent"]
    on_error => "no_match"
  }

  # Event type & protocol
  mutate {
    replace => {
      "event.idm.read_only_udm.metadata.event_type"          => "GENERIC_EVENT"
      "event.idm.read_only_udm.metadata.vendor_name"         => "WP Engine"
      "event.idm.read_only_udm.metadata.product_name"        => "NGINX SERVER"
    }
  }

  if [observer_id] != "" {
    mutate {
      replace => {
        "event.idm.read_only_udm.principal.asset_id" => "%{observer_id}"
      }
    }
  }

  # Hand off to UDM
  mutate { merge => { "@output" => "event" } }
}

---

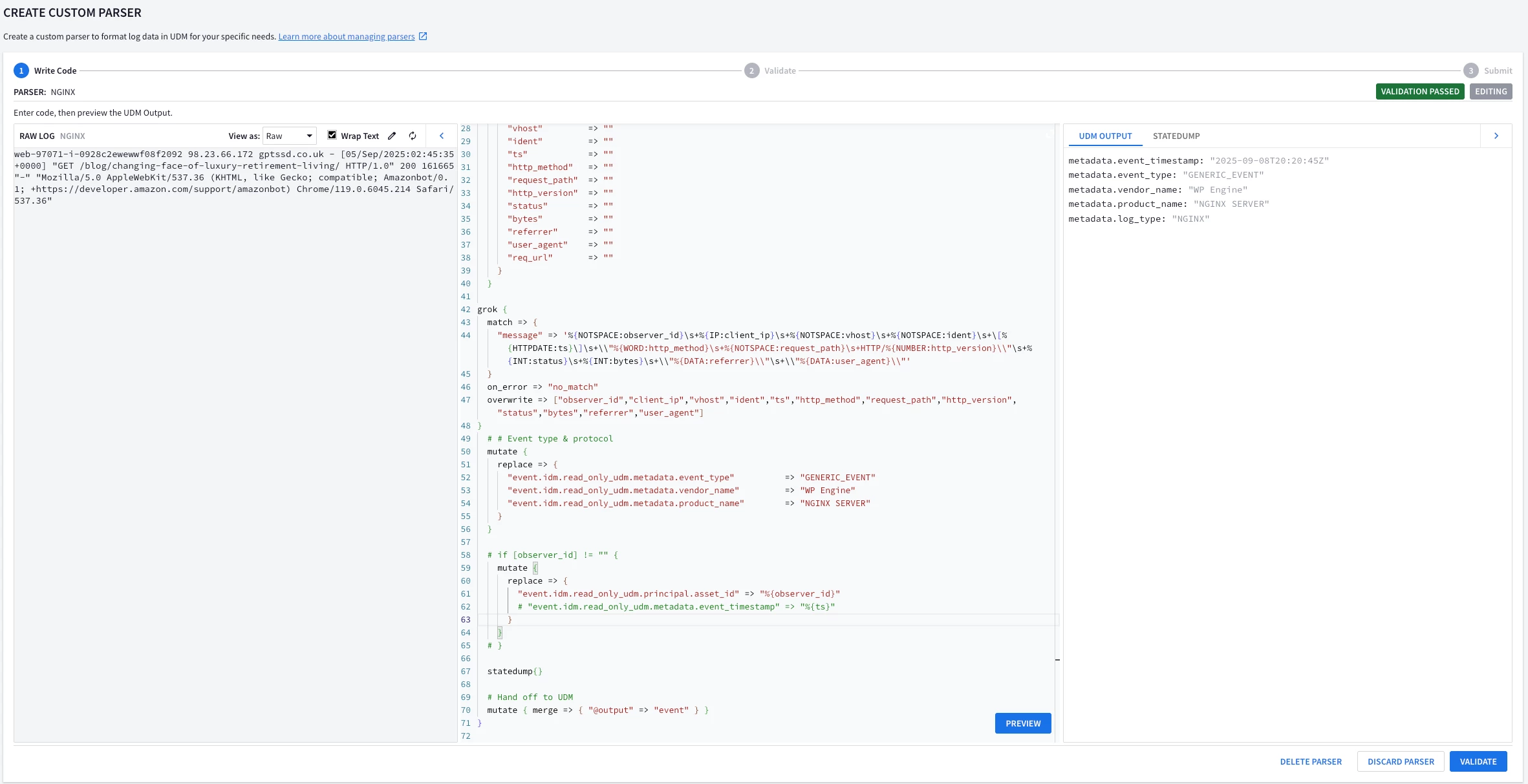

Raw Log


web-97071-i-0928c2ewewwf08f2092 98.23.66.172 gptssd.co.uk - [05/Sep/2025:02:45:35 +0000] "GET /blog/changing-face-of-luxury-retirement-living/ HTTP/1.0" 200 161665 "-" "Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; Amazonbot/0.1; +https://developer.amazon.com/support/amazonbot) Chrome/119.0.6045.214 Safari/537.36"---In UDM I can only see the static fields
  • metadata.event_type: "GENERIC_EVENT"
  • metadata.vendor_name: "WP Engine"
  • metadata.product_name: "NGINX SERVER"
  • metadata.log_type: "NGINX"

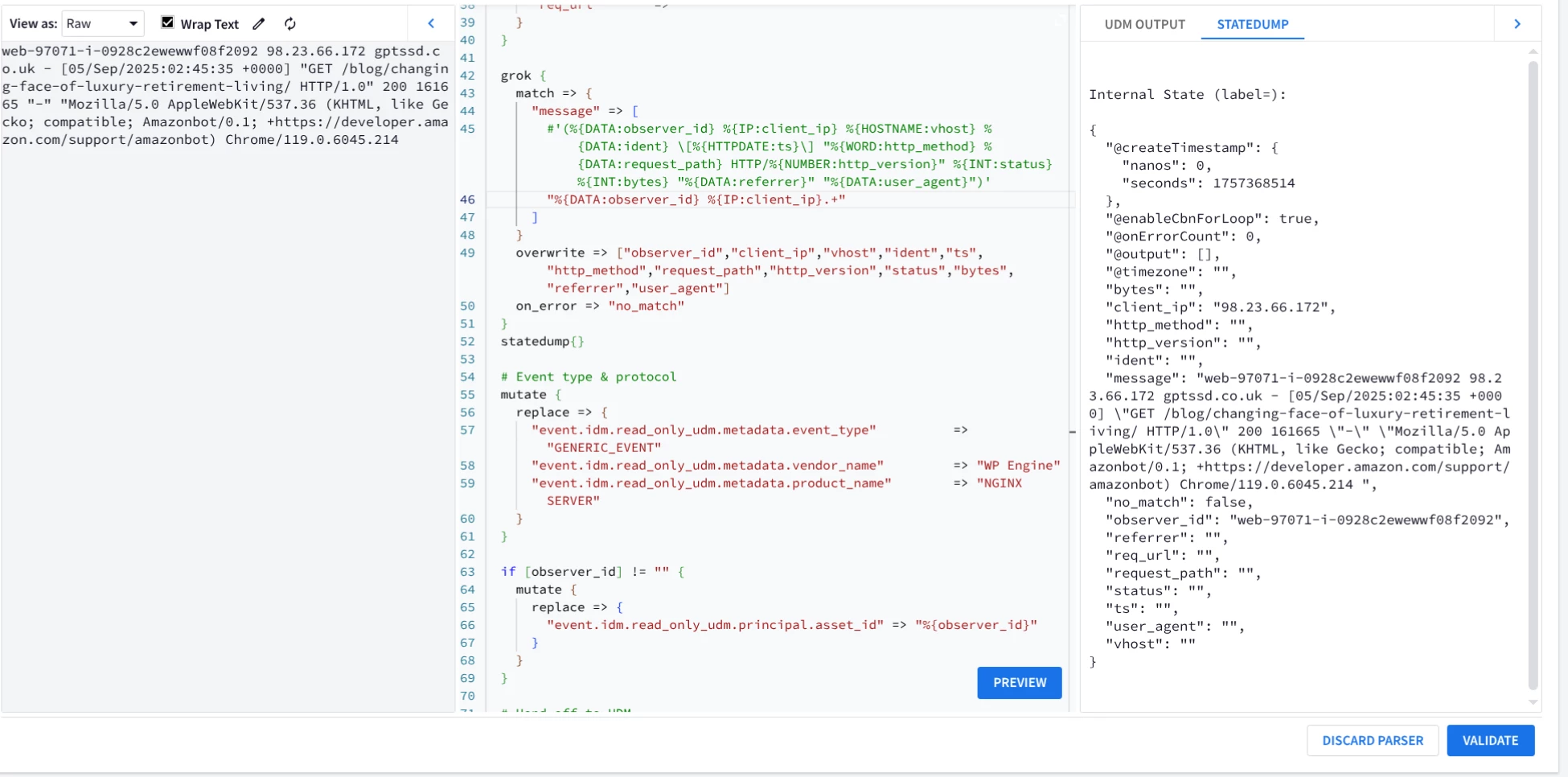

I tried to get the observer_id first but no success I think the issue is with the grok pattern I am using. Can any one help !!

Best answer by mikewilusz

Here’s how I’d grok out the date and then use the date function to parsed it to UDM.



 grok {
 match => {
 "message" => "%{DATA:observer_id} %{IP:client_ip} %{HOSTNAME:vhost} %{DATA:ident} \\[%{DATA:datetime} %{DATA:timezone}\\] %{GREEDYDATA:rest_of_line}"
 }
 on_error => "no_match"
 overwrite => ["observer_id","client_ip","vhost","ident","rest_of_line"]
 }

 date {
  match => ["datetime", "dd/MMM/yyyy:HH:mm:ss"]
  on_error => "date_no_match"
}



-mike

6 replies

ayush_gupta_oak
Forum|alt.badge.img+4

But this pattern is not working in the Chronicle Parser








mikewilusz
Staff
Forum|alt.badge.img+10
  • mikewilusz
  • Staff
  • September 8, 2025

Looks like your grok syntax doesn’t match what the parser is expecting. Did a quick update and now I’m seeing values match so that should get you on your way :)





-mike

ayush_gupta_oak
Forum|alt.badge.img+4

Hi Mike,
Last night I also got stuck at parsing Date

# Product: OakNorth Web Access

# Category: Custom - HTTP Access Parser

# Last Updated: 08-Sep-2025

# Author: Ayush Gupta

# Version: 0.1

#

# Fields Mapped to UDM (ACCESS LOGS ONLY)

# metadata.event_timestamp ← timestamp (from [01/Sep/2025:07:20:09 +0000])

# metadata.event_type ← GENERIC_EVENT

# network.application_protocol← HTTP

# principal.ip ← client_ip

# principal.platform ← user_agent (client device info)

# intermediary.hostname ← observer_id (web server instance)

# target.hostname ← vhost

# target.url ← http://{vhost}{request_path}

# network.http.method ← http_method

# network.http.response_code ← status

# network.http.user_agent ← user_agent

# network.http.referral_url ← referrer (when present)

filter {

# # Initialize working variables

mutate {

replace => {

"observer_id" => ""

"client_ip" => ""

"vhost" => ""

"ident" => ""

"ts" => ""

"http_method" => ""

"request_path" => ""

"http_version" => ""

"status" => ""

"bytes" => ""

"referrer" => ""

"user_agent" => ""

"req_url" => ""

}

}

# Parse ACCESS LOG:

# <instance> <client_ip> <vhost> <ident> [<HTTPDATE>] "<METHOD> <PATH> HTTP/<ver>" <status> <bytes> "<referrer>" "<UA>"

# First grok (which we know works)

grok {

match => {

"message" => '%{DATA:observer_id} %{IP:client_ip} %{HOSTNAME:vhost} %{DATA:ident} %{GREEDYDATA:rest_of_line}'

}

on_error => "no_match"

overwrite => ["observer_id","client_ip","vhost","ident","rest_of_line"]

}


# Second GROK: parse timestamp, method, path, version, status, bytes, referrer, UA

# grok {

# match => {

# "rest_of_line" => '\[%{DATA:ts}\] \\"%{DATA:request_line}\\" %{INT:status} %{INT:bytes} \\"%{DATA:referrer}\\" \\"%{DATA:user_agent}\\"'

# }

# tag_on_failure => ["_rest_parse_failure"]

# overwrite => ["ts", "request_line", "status", "bytes", "referrer", "user_agent"]

# }

# # Then parse request_line separately

# grok {

# match => {

# "request_line" => '%{WORD:http_method} %{NOTSPACE:request_path} HTTP/%{NUMBER:http_version}'

# }

# tag_on_failure => ["_request_parse_failure"]

# overwrite => ["http_method", "request_path", "http_version"]

# }


# Set event timestamp (Chronicle copies 'timestamp' → metadata.event_timestamp)

mutate { replace => { "timestamp" => "%{ts}" } }

# Normalize referrer dash to empty

if [referrer] == "-" { mutate { replace => { "referrer" => "" } } }

# Build a simple absolute URL (assume HTTP in the log line's request line)

mutate { replace => { "req_url" => "http://%{vhost}%{request_path}" } }

# Convert numeric fields (only if not empty)

if [status] != "" {

mutate { convert => { "status" => "integer" } }

}

if [bytes] != "" {

mutate { convert => { "bytes" => "integer" } }

}

# --- Map ACCESS LOG to UDM ---

# Event type & protocol

mutate {

replace => {

"event.idm.read_only_udm.metadata.event_type" => "GENERIC_EVENT"

"event.idm.read_only_udm.network.application_protocol" => "HTTP"

}

}

# Actor and target

if [client_ip] != "" {

mutate { merge => { "event.idm.read_only_udm.principal.ip" => "client_ip" } }

}

if [user_agent] != "" {

mutate { replace => { "event.idm.read_only_udm.principal.platform" => "%{user_agent}" } }

}

if [observer_id] != "" {

mutate { replace => { "event.idm.read_only_udm.intermediary.hostname" => "%{observer_id}" } }

}

if [vhost] != "" {

mutate { replace => { "event.idm.read_only_udm.target.hostname" => "%{vhost}" } }

}

if [req_url] != "" {

mutate { replace => { "event.idm.read_only_udm.target.url" => "%{req_url}" } }

}

# HTTP details

if [http_method] != "" {

mutate { replace => { "event.idm.read_only_udm.network.http.method" => "%{http_method}" } }

}

if [user_agent] != "" {

mutate { replace => { "event.idm.read_only_udm.network.http.user_agent" => "%{user_agent}" } }

}

if [status] != "" {

mutate { replace => { "event.idm.read_only_udm.network.http.response_code" => "%{status}" } }

}

if [referrer] != "" {

mutate { replace => { "event.idm.read_only_udm.network.http.referral_url" => "%{referrer}" } }

}

statedump {}

# Hand off to UDM

mutate { merge => { "@output" => "event" } }

}

filter {

 # Initialize working variables
 mutate {
 replace => {
 "observer_id" => ""
 "client_ip" => ""
 "vhost" => ""
 "ident" => ""
 "ts" => ""
 "http_method" => ""
 "request_path" => ""
 "http_version" => ""
 "status" => ""
 "bytes" => ""
 "referrer" => ""
 "user_agent" => ""
 "req_url" => ""
 }
 }

 # Parse ACCESS LOG:
 # <instance> <client_ip> <vhost> <ident> [<HTTPDATE>] "<METHOD> <PATH> HTTP/<ver>" <status> <bytes> "<referrer>" "<UA>"
 # First grok (which we know works)
 grok {
 match => {
 "message" => '%{DATA:observer_id} %{IP:client_ip} %{HOSTNAME:vhost} %{DATA:ident} %{GREEDYDATA:rest_of_line}'
 }
 on_error => "no_match"
 overwrite => ["observer_id","client_ip","vhost","ident","rest_of_line"]
 }


# Second GROK: parse timestamp, method, path, version, status, bytes, referrer, UA
# grok {
# match => {
# "rest_of_line" => '\[%{DATA:ts}\] \\"%{DATA:request_line}\\" %{INT:status} %{INT:bytes} \\"%{DATA:referrer}\\" \\"%{DATA:user_agent}\\"'
# }
# tag_on_failure => ["_rest_parse_failure"]
# overwrite => ["ts", "request_line", "status", "bytes", "referrer", "user_agent"]
# }

# # Then parse request_line separately
# grok {
# match => {
# "request_line" => '%{WORD:http_method} %{NOTSPACE:request_path} HTTP/%{NUMBER:http_version}'
# }
# tag_on_failure => ["_request_parse_failure"]
# overwrite => ["http_method", "request_path", "http_version"]
# }


 # Set event timestamp (Chronicle copies 'timestamp' → metadata.event_timestamp)
 mutate { replace => { "timestamp" => "%{ts}" } }

 # Normalize referrer dash to empty
 if [referrer] == "-" { mutate { replace => { "referrer" => "" } } }

 # Build a simple absolute URL (assume HTTP in the log line's request line)
 mutate { replace => { "req_url" => "http://%{vhost}%{request_path}" } }

 # Convert numeric fields (only if not empty)
 if [status] != "" {
 mutate { convert => { "status" => "integer" } }
 }
 if [bytes] != "" {
 mutate { convert => { "bytes" => "integer" } }
 }

 # --- Map ACCESS LOG to UDM ---

 # Event type & protocol
 mutate {
 replace => {
 "event.idm.read_only_udm.metadata.event_type" => "GENERIC_EVENT"
 "event.idm.read_only_udm.network.application_protocol" => "HTTP"
 }
 }

 # Actor and target
 if [client_ip] != "" {
 mutate { merge => { "event.idm.read_only_udm.principal.ip" => "client_ip" } }
 }
 if [user_agent] != "" {
 mutate { replace => { "event.idm.read_only_udm.principal.platform" => "%{user_agent}" } }
 }
 if [observer_id] != "" {
 mutate { replace => { "event.idm.read_only_udm.intermediary.hostname" => "%{observer_id}" } }
 }
 if [vhost] != "" {
 mutate { replace => { "event.idm.read_only_udm.target.hostname" => "%{vhost}" } }
 }
 if [req_url] != "" {
 mutate { replace => { "event.idm.read_only_udm.target.url" => "%{req_url}" } }
 }

 # HTTP details
 if [http_method] != "" {
 mutate { replace => { "event.idm.read_only_udm.network.http.method" => "%{http_method}" } }
 }
 if [user_agent] != "" {
 mutate { replace => { "event.idm.read_only_udm.network.http.user_agent" => "%{user_agent}" } }
 }
 if [status] != "" {
 mutate { replace => { "event.idm.read_only_udm.network.http.response_code" => "%{status}" } }
 }
 if [referrer] != "" {
 mutate { replace => { "event.idm.read_only_udm.network.http.referral_url" => "%{referrer}" } }
 }

 statedump {}

 # Hand off to UDM
 mutate { merge => { "@output" => "event" } }
}

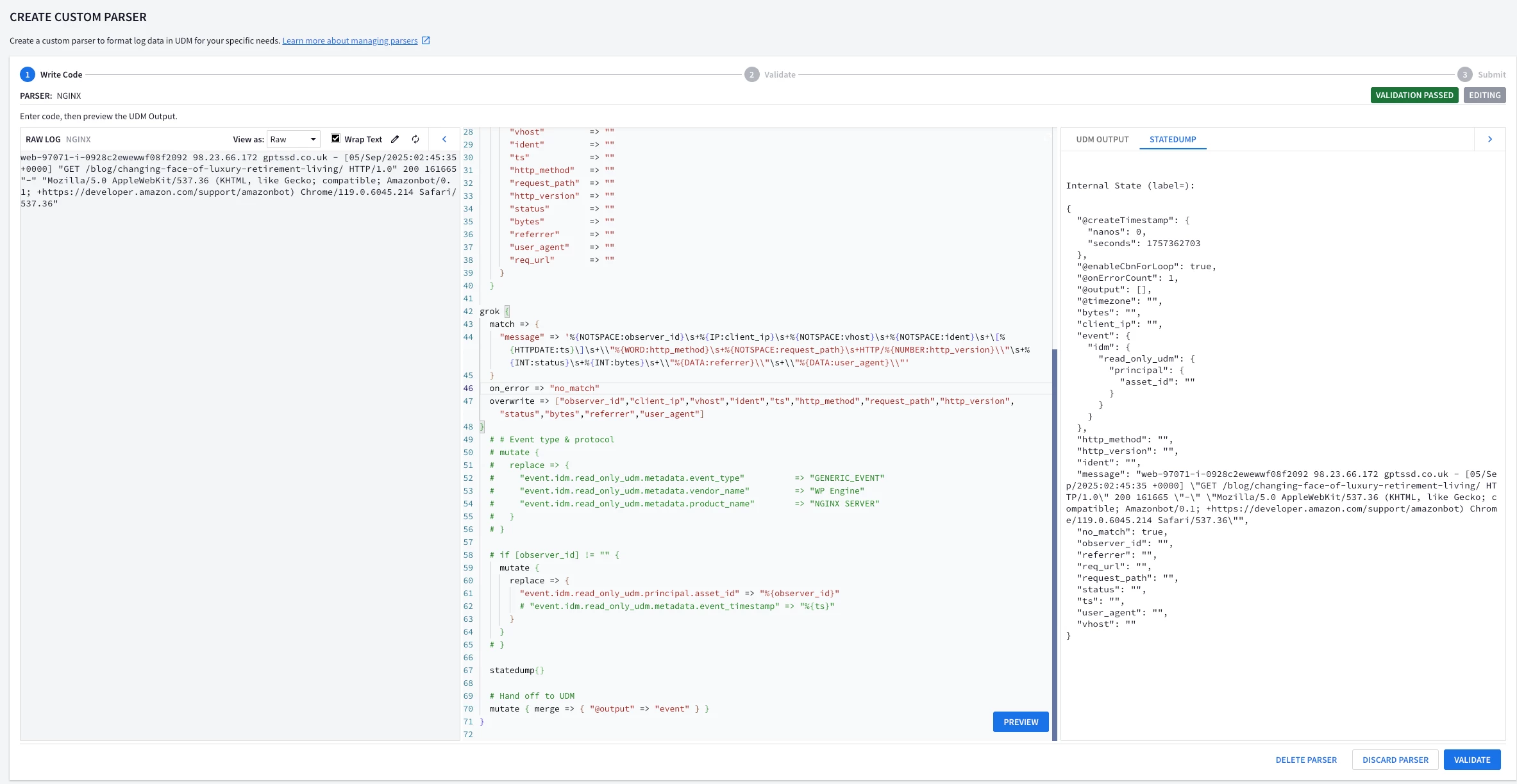

Output:

Internal State (label=):{ "@createTimestamp": { "nanos": 0, "seconds": [removed by moderator] }, "@enableCbnForLoop": true, "@onErrorCount": 0, "@output": [], "@timezone": "", "bytes": "", "client_ip": "34.39.252.22", "event": { "idm": { "read_only_udm": { "intermediary": { "hostname": "web-97071-i-0928c2f8bf23f2092" }, "metadata": { "event_type": "GENERIC_EVENT" }, "network": { "application_protocol": "HTTP" }, "principal": { "ip": [ "34.39.252.22" ] }, "target": { "hostname": "osdsrth.co.uk", "url": "http://osdsrth.co.uk" } } } }, "http_method": "", "http_version": "", "ident": "-", "message": "web-97071-i-0928c2f8bf23f2092 34.39.252.22 osdsrth.co.uk - [05/Sep/2025:02:45:26 +0000] \"GET /deals/palamon-capital-partners/ HTTP/1.0\" 200 149717 \"-\" \"Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; Amazonbot/0.1; +https://developer.amazon.com/support/amazonbot) Chrome/119.0.6045.214 Safari/537.36\"", "no_match": false, "observer_id": "web-97071-i-0928c2f8bf23f2092", "referrer": "", "req_url": "http://osdsrth.co.uk", "request_path": "", "rest_of_line": "[05/Sep/2025:02:45:26 +0000] \"GET /deals/palamon-capital-partners/ HTTP/1.0\" 200 149717 \"-\" \"Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; Amazonbot/0.1; +https://developer.amazon.com/support/amazonbot) Chrome/119.0.6045.214 Safari/537.36\"", "status": "", "timestamp": "", "ts": "", "user_agent": "", "vhost": "osdsrth.co.uk"}

ayush_gupta_oak
Forum|alt.badge.img+4
"raw_timestamp": "[05/Sep/2025:02:45:26 +0000] ",Just stuck with one
mikewilusz
Staff
Forum|alt.badge.img+10
  • mikewilusz
  • Staff
  • Answer
  • September 9, 2025

Here’s how I’d grok out the date and then use the date function to parsed it to UDM.



 grok {
 match => {
 "message" => "%{DATA:observer_id} %{IP:client_ip} %{HOSTNAME:vhost} %{DATA:ident} \\[%{DATA:datetime} %{DATA:timezone}\\] %{GREEDYDATA:rest_of_line}"
 }
 on_error => "no_match"
 overwrite => ["observer_id","client_ip","vhost","ident","rest_of_line"]
 }

 date {
  match => ["datetime", "dd/MMM/yyyy:HH:mm:ss"]
  on_error => "date_no_match"
}



-mike

ayush_gupta_oak
S
Forum|alt.badge.img+3
  • satya_sakethBronze 5
  • Bronze 5
  • November 18, 2025

Hi Mike,

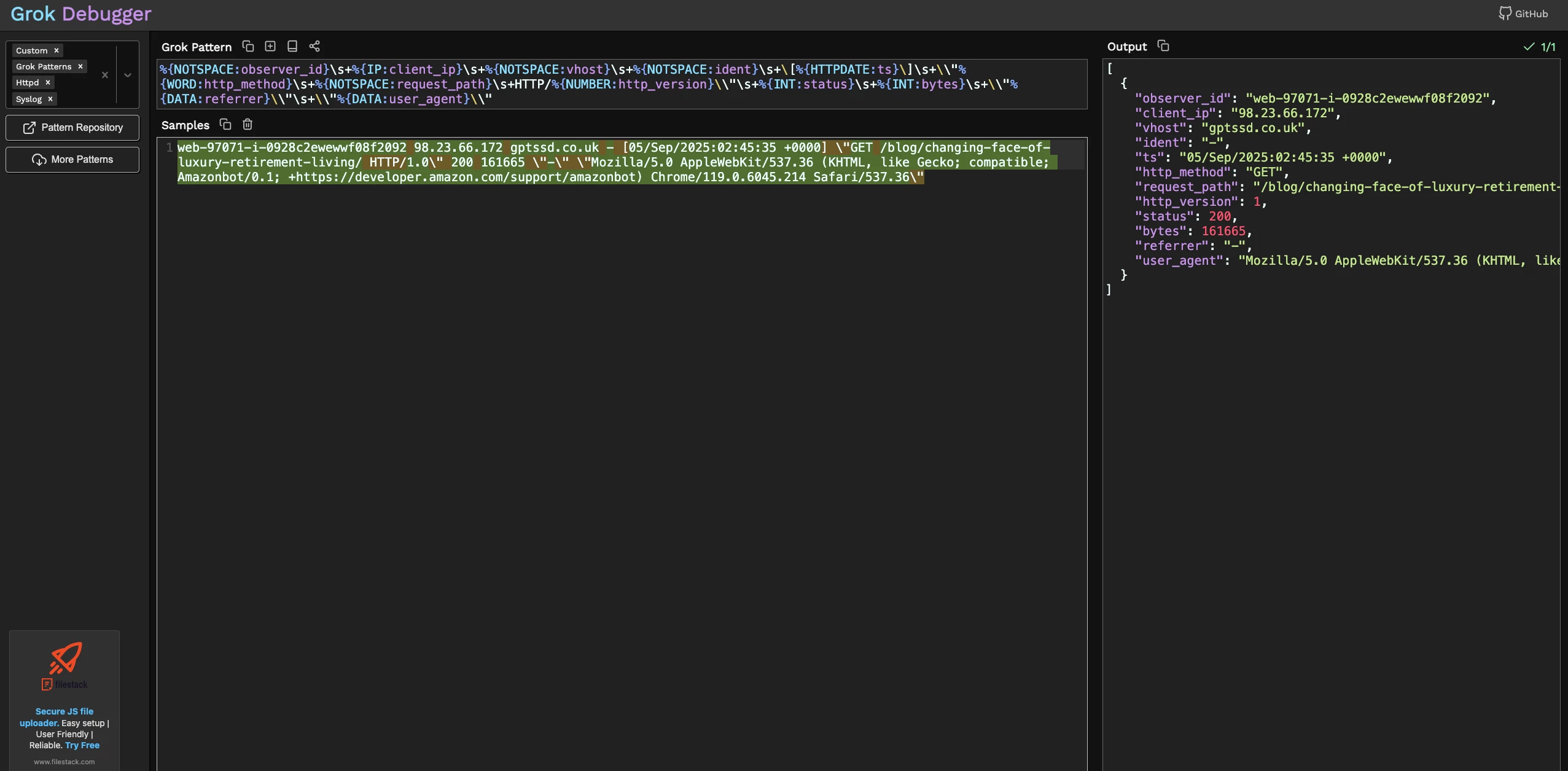

I am also facing an similar issue the grok pattern is working in grok debugger but not in secops
is there any other tool we can use to check/validate gork prattern?
