+6Hello,
Could someone provide an example of the table HTML for the predefined views?
I would like to use this template to display JSON results from a QRadar AQL query.
The current template uses static results. What modifications are needed to configure it to use dynamic JSON results and include fields such as Source IP, User-Agent, and Location?
Thank you!
Best answer by yogesh_mahera
<table>
<thead>
<tr>
<th>Source IP</th>
<th>User-Agent</th>
<th>Location</th>
<!-- Add more columns as needed -->
</tr>
</thead>
<tbody id="dynamic-data">
<!-- This section will be populated dynamically with JSON results -->
</tbody>
</table>
// Assume 'jsonData' is the JSON result from the QRadar AQL query
const tableBody = document.getElementById('dynamic-data');
jsonData.forEach((row) => {
const tableRow = document.createElement('tr');
tableRow.innerHTML = `
<td>${row.SourceIP}</td>
<td>${row.UserAgent}</td>
<td>${row.Location}</td>
<!-- Add more columns as needed -->
`;
tableBody.appendChild(tableRow);
});
+1<table>
<thead>
<tr>
<th>Source IP</th>
<th>User-Agent</th>
<th>Location</th>
<!-- Add more columns as needed -->
</tr>
</thead>
<tbody id="dynamic-data">
<!-- This section will be populated dynamically with JSON results -->
</tbody>
</table>
// Assume 'jsonData' is the JSON result from the QRadar AQL query
const tableBody = document.getElementById('dynamic-data');
jsonData.forEach((row) => {
const tableRow = document.createElement('tr');
tableRow.innerHTML = `
<td>${row.SourceIP}</td>
<td>${row.UserAgent}</td>
<td>${row.Location}</td>
<!-- Add more columns as needed -->
`;
tableBody.appendChild(tableRow);
});
+12Adding some more details on getting JSON data into the widget:
A simple 1d string, note how the placeholder will resolve a STRING so you need to encapsulate with ""
<script>
simpleString = "[ActionName.ScriptResult]"
</script>
To get a full JSON that you can iterate through in Js (like the thing above), as this is a data type, we don't need ""
<script>
fullJsonPayload = [Action.JsonResult];
</script>
If you chose a key (theKey) from a JsonResult, it outputs a comma separated list of results e.g. {},{}, so you might need to encapsulate the result in [] so that after parsing, when JS runs, it appears right.
<script>
arrayOfAnswers = [[Action.JsonResult | "theKey"]]
</script>
The best tool for checking is your browser buildin devtools inspector, you can open an Alert widget and inspect the HTML to see how the data rendered.
+1Adding some more details on getting JSON data into the widget:
A simple 1d string, note how the placeholder will resolve a STRING so you need to encapsulate with ""
<script>
simpleString = "[ActionName.ScriptResult]"
</script>
To get a full JSON that you can iterate through in Js (like the thing above), as this is a data type, we don't need ""
<script>
fullJsonPayload = [Action.JsonResult];
</script>
If you chose a key (theKey) from a JsonResult, it outputs a comma separated list of results e.g. {},{}, so you might need to encapsulate the result in [] so that after parsing, when JS runs, it appears right.
<script>
arrayOfAnswers = [[Action.JsonResult | "theKey"]]
</script>
The best tool for checking is your browser buildin devtools inspector, you can open an Alert widget and inspect the HTML to see how the data rendered.
Hi, @SoarAndy
I hope you are well, I need to create a table in html for a Default Case View that contains the information of the alerts, following your example I could call
fullJsonPayload = [ActionName.JsonResult]; but this action receives as mandatory a parameter called “case id”, how could I send this parameter ? or otherwise what would be the best way to paint these alerts by case...
Thanks greetings from colombia
+12Hi, @SoarAndy
I hope you are well, I need to create a table in html for a Default Case View that contains the information of the alerts, following your example I could call
fullJsonPayload = [ActionName.JsonResult]; but this action receives as mandatory a parameter called “case id”, how could I send this parameter ? or otherwise what would be the best way to paint these alerts by case...
Thanks greetings from colombia
HTML can only read data from the playbook/Actions, they cannot perform actions or provide input it is a 1 way process. So there is no way for HTML table to provide info.
You have to architect the playbook in a way that the info is created regardless of HTML tables
+1HTML can only read data from the playbook/Actions, they cannot perform actions or provide input it is a 1 way process. So there is no way for HTML table to provide info.
You have to architect the playbook in a way that the info is created regardless of HTML tables
Hi again, Is it possible to paint an html table using a Case Context Values ? or a comment of a especific case?

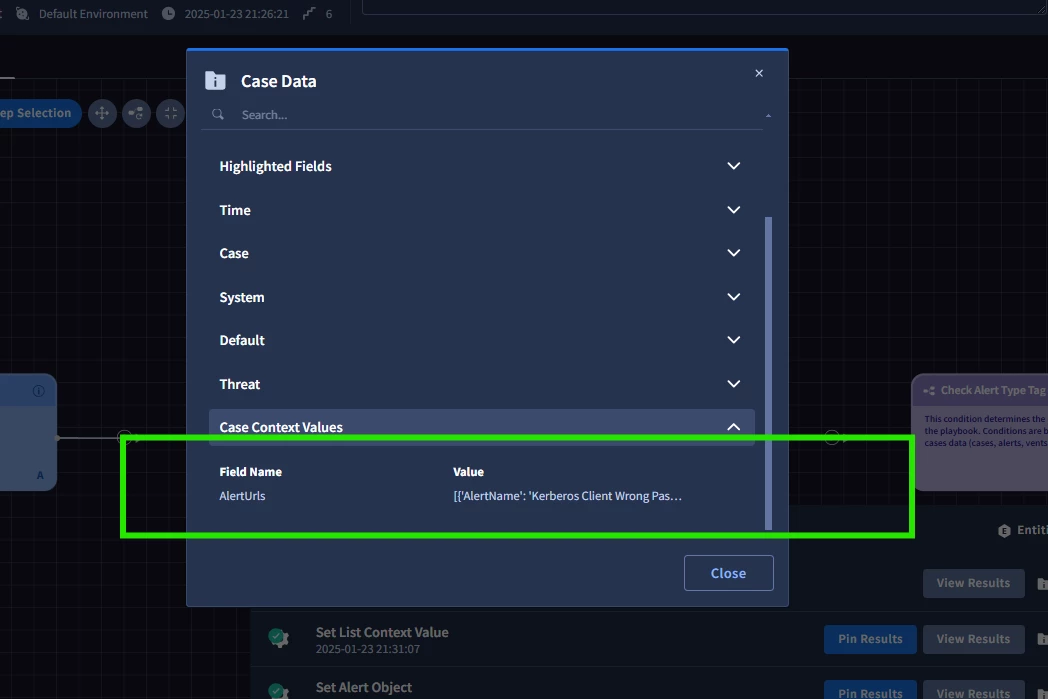

i have this playbook which has a variable set in the case of

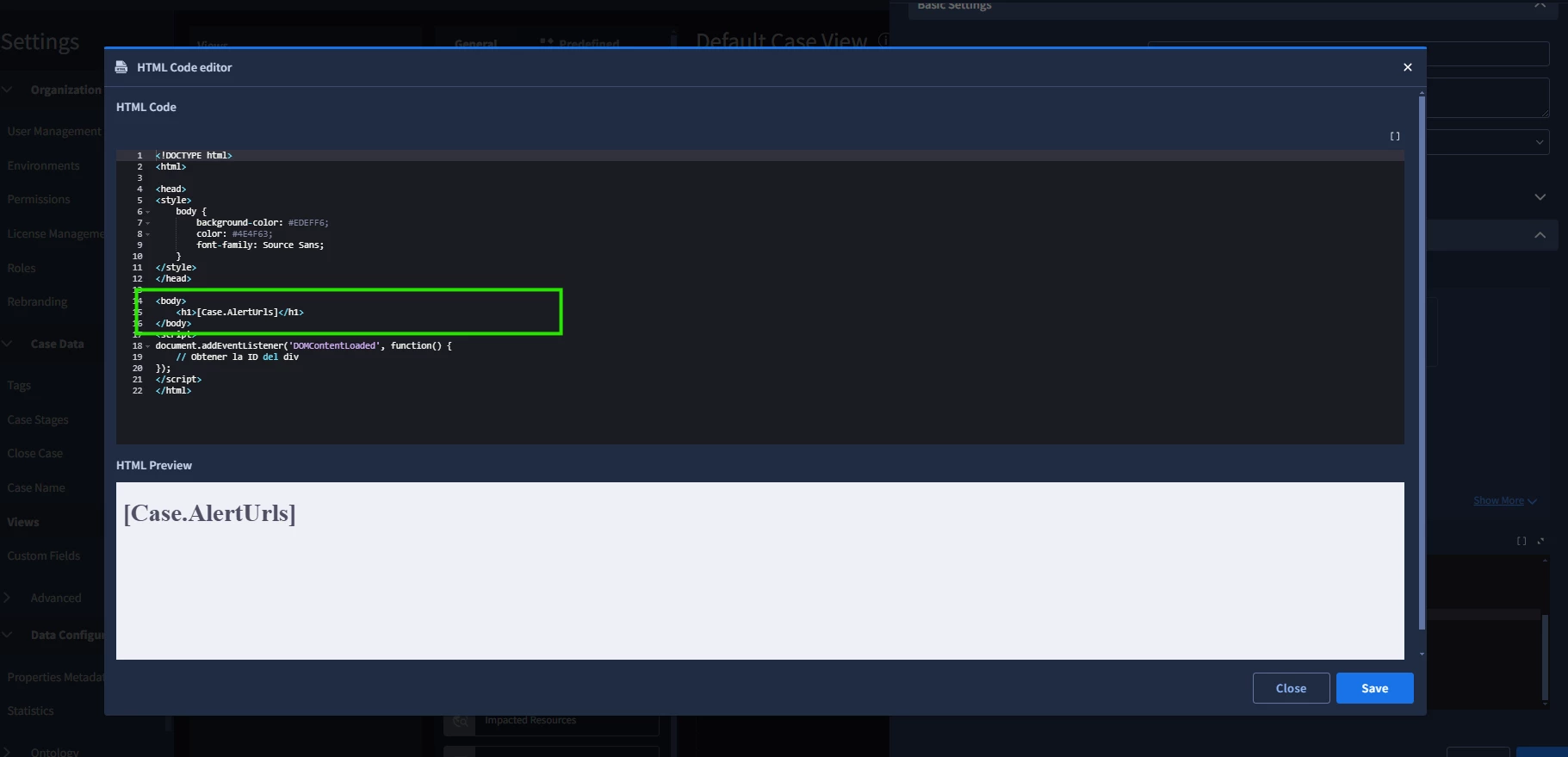

But when I try to retrieve the information from the Case.AlertUrls variable it does not show me any information.

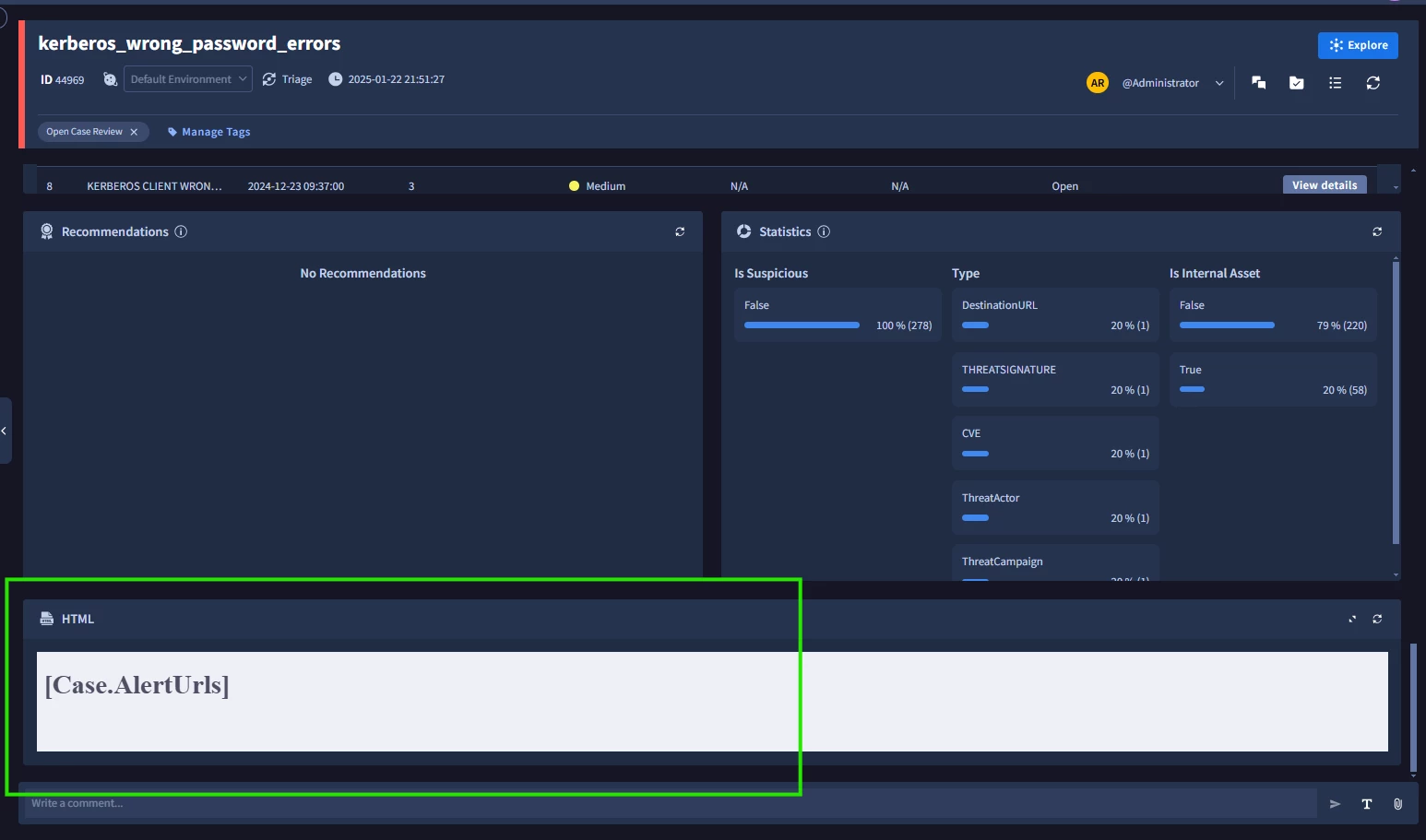

and this is the result
Hope your Help
¡Thanks!
+12Hi again, Is it possible to paint an html table using a Case Context Values ? or a comment of a especific case?
i have this playbook which has a variable set in the case of
But when I try to retrieve the information from the Case.AlertUrls variable it does not show me any information.
and this is the result
Hope your Help
¡Thanks!

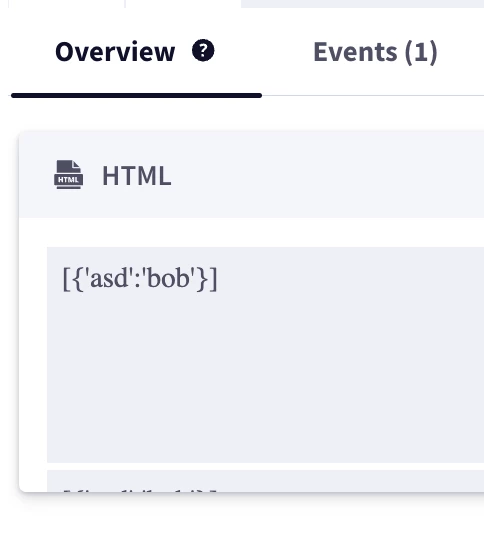

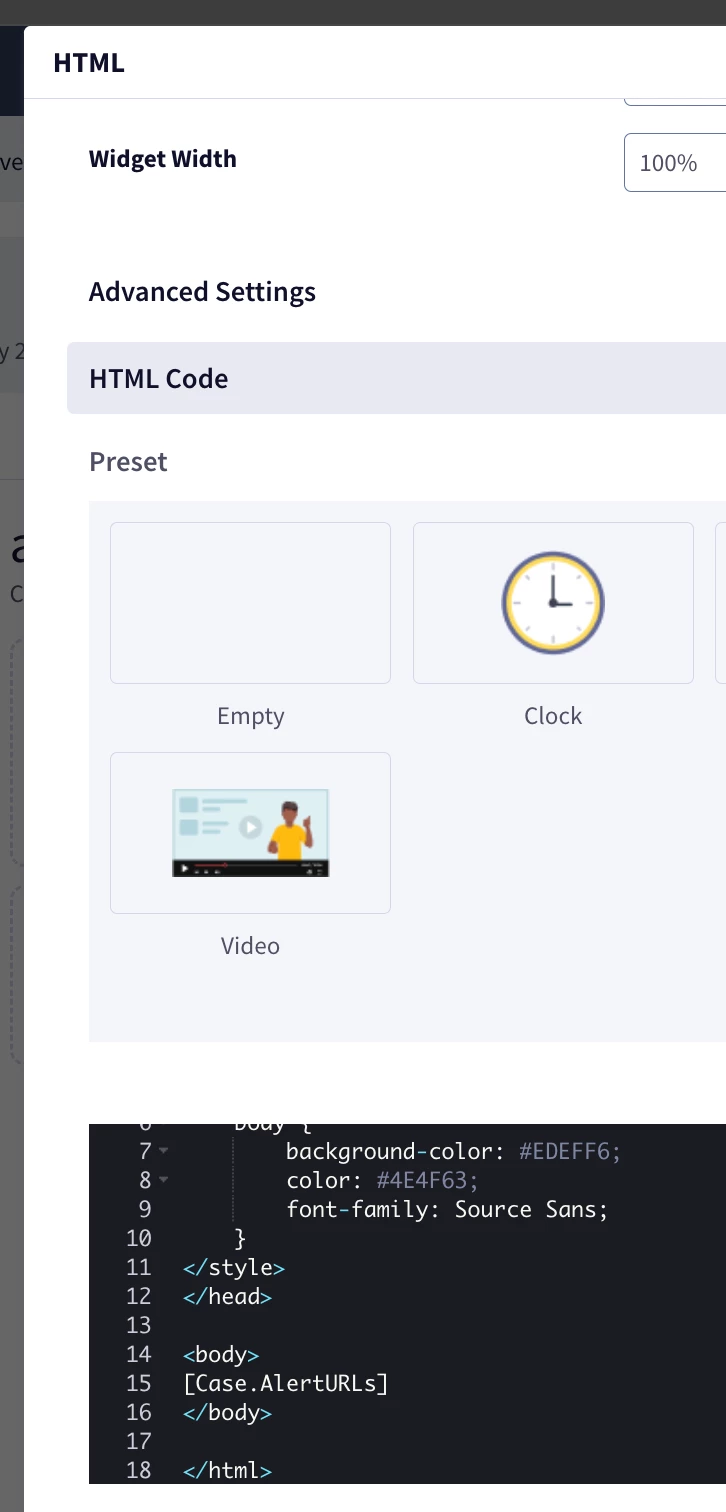

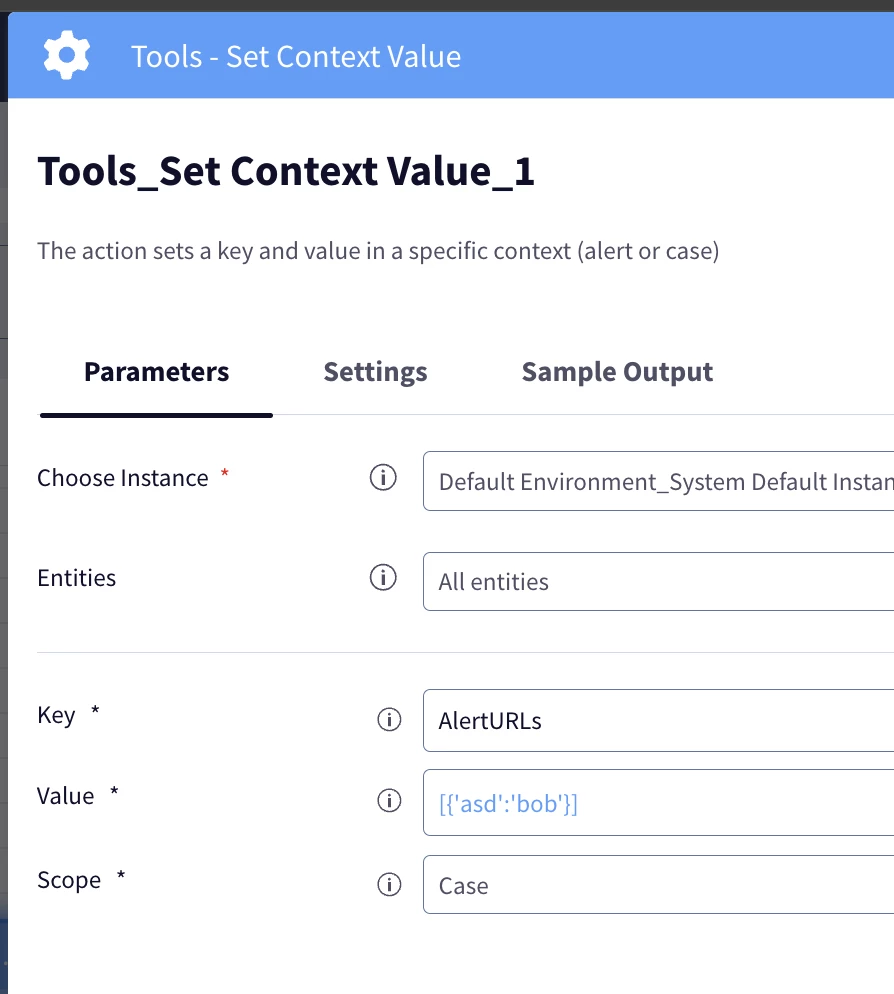

Here is a sample
The first image you have showing the data exists, this is in s simulated case. The image of it not working is a real case. Is there a chance they have different data in and therefore theHTML is not parsing to a value ?
+6HTML can only read data from the playbook/Actions, they cannot perform actions or provide input it is a 1 way process. So there is no way for HTML table to provide info.
You have to architect the playbook in a way that the info is created regardless of HTML tables
Hi @SoarAndy ,
Can I set multiple json results in one HTML?
I`m trying to build a widget with multiple tabs (like in VT), each tab will present different JSON result.
This works for me only for single JSON, not multiple
+12Hi @SoarAndy ,
Can I set multiple json results in one HTML?
I`m trying to build a widget with multiple tabs (like in VT), each tab will present different JSON result.
This works for me only for single JSON, not multiple
Yes this is 'normal' HTML/JS
I suggest using browser devtools to load the page and inspect the html (you need to dig down several DOM Layers to find the BODY) and see how it parsed.
JSON1 = [Action1.JsonResult]
JSON2 = [Action2.JsonResult]

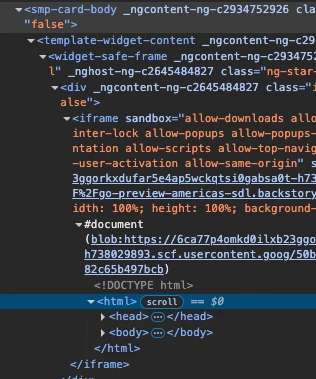

In this image, the top smp is the object in the HTML widget, I had to expand several layers to find the iframe and HTML to check how the JSON objects parsed into JS variables
