predefined widget for custom actions

Can any one reply ?

@vanitharaj1208 it is not supported at the moment. However, there's already a feature request for it. Please get in touch with support to receive a public issue tracker link for tracking its progress.

+1 to F3rz about roadmap.

There is a way currently, but unfortunately it's quite difficult

You can drag in the Prebuilt widget, then just copy the HTML/JS code out, and paste it into your own widget
However
You ned to reverse engineer the code to utilise your own data structure, which is quite complex

Any update? can we  implement predefined widget in custom actions now?

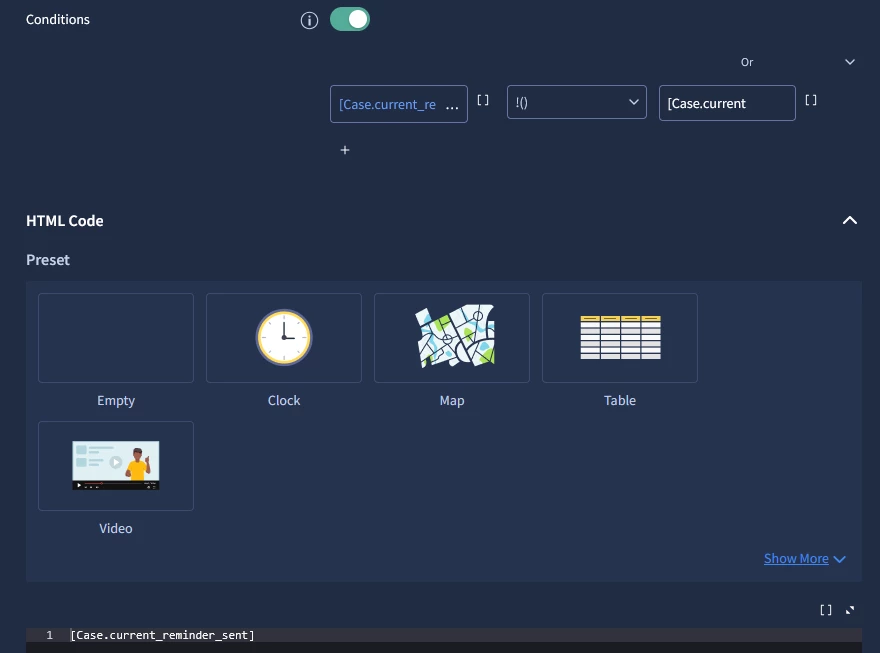

I believe the best workaround is to push your desired output (plaintext or HTML) into a context value, such as [case.current_reminder_sent]. In the Playbook's 'Core View', you can then use an HTML widget with a conditional display.

You can set a condition like:

[case.current_reminder_sent] DOES NOT CONTAIN [case.current_

To explain: In Google SOAR, if a context value is empty, the platform displays the literal string (the placeholder name). By checking if the field contains itself minus the closing bracket or some wording, you effectively check if the variable has been populated with actual data.

This way, you can pre-build an HTML widget that only appears once the context value is executed. Furthermore, you can update this view dynamically just by changing the context value, as the HTML widget will automatically reflect whatever is stored in  [case.current_reminder_sent].

example for case.current_reminder_sent:

Hi falks,

I recenlty explored the Content Hub codebase and discovered predefined widgets available in custom integrations. While there's no official documentation on creating predefined widgets, the process seems straightforward based on existing integration code.

So i created a predefined widget for my custom action by following this pattern. Then pushed code to my instance using `mp dev-env push integration` command.

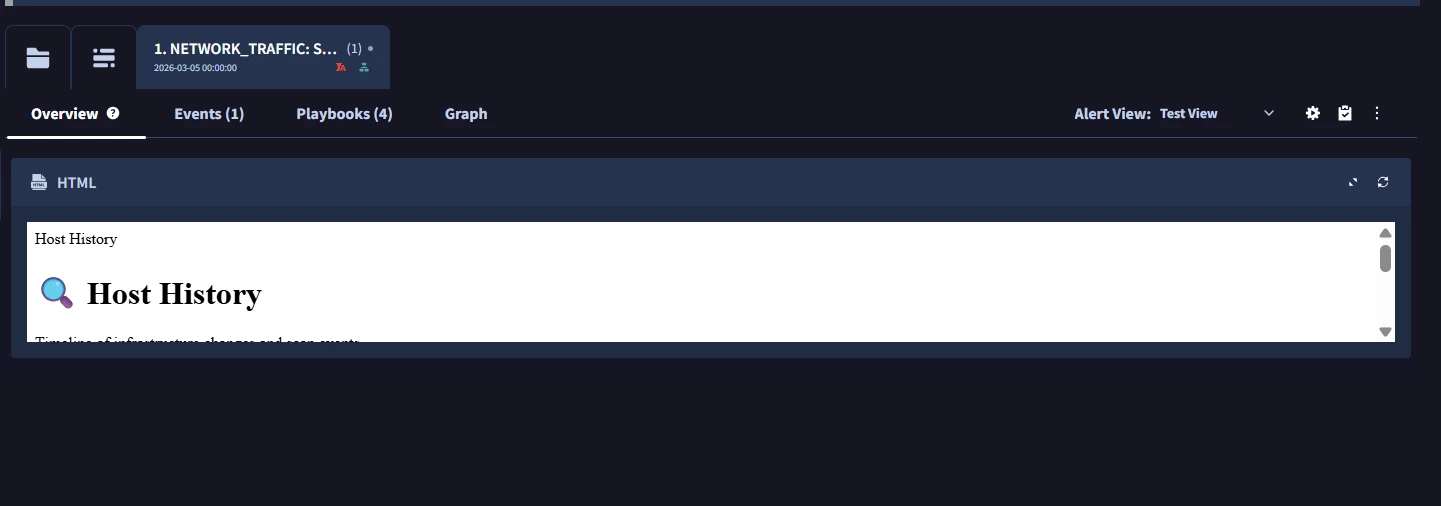

Now the widget appears in the playbook when attaching the respective action, but after execution, the widget does not show up. I also created a manually HTML widget with identical code whichi displays correctly, but without CSS styling. (See below the screenshots)


I made some changes in the widget html and yaml and then pushed it again with `mp dev-env push integration`, but the HTML changes are not reflected

Here is my yaml file for reference.

title: Host timeline
type: html
scope: alert
action_identifier: Get Host History
description: Display host history data.
data_definition:
    html_height: 600
    safe_rendering: false
    type: html
    widget_definition_scope: both
condition_group:
    conditions:
        -   field_name: '[{stepInstanceName}.JsonResult]'
            value: ''
            match_type: is_not_empty
    logical_operator: and
default_size: full_width

And in my html i have referenced the json by this placeholder values

....
<script>
if ('[{stepInstanceName}.is_success]' == 'true') {
       hostHistoryData = [{stepInstanceName}.JsonResult]
}
</script>
....

Questions

1. How can I debug why the predefined widget isn't rendering after action execution?

2. Why aren't widget updates being applied after re-pushing?

Thanks is advance.

I am not from a google support but based on my investigation:

1. How can I debug why the predefined widget isn't rendering after action execution?

debugging will not show the results as predefined widgets in moment of testing doesn’t have any data, it get data after app run the results so in debugger it is not possible to run 2 separate actions at once.

About visibility
condition issues, widgets are only shown if first playbook meet 2 requirements: view is applied via it (and contains that widget) and widget got results inside that first playbook

2. Why aren't widget updates being applied after re-pushing?

basically the same answer as in 1st

still the best method is to put output of html into context value (for example via set context value action) and use regular html widget that will have [case.your_context_value] placeholder
