Using Data Tables in UDM Search and Yara-L Rule

The exclusion can be performed directly against the UDM field:

metadata.log_type = "GCP_DNS"
metadata.event_type = "NETWORK_DNS"
network.dns.questions.name != ""
not (
  network.dns.questions.name in regex
    %dns_tunnel_list.domain_names
)

For the detection rule:

rule LOG_SECOPS_005_dns_newly_seen_domain_v2 {
  meta:
    version = "1.0"

  events:
    $dns.metadata.log_type = "GCP_DNS"
    $dns.metadata.event_type = "NETWORK_DNS"

    $dns.network.dns.questions.name != ""

    $querying_ip = $dns.principal.ip
    $query_name = $dns.network.dns.questions.name

    not (
      $dns.network.dns.questions.name in regex
        %dns_tunnel_list.domain_names
    )

  match:
    $querying_ip over 1h

  condition:
    $dns
}

Make sure dns_tunnel_list.domain_names is an unmapped regex-type column. The values should also be valid regex expressions. For exact domain matching, escape the dots and anchor the expressions:

^example\.invalid$
^does-not-exist\.example\.com$
^googleapis\.com$
^metadata\.google\.internal$

To exclude both a parent domain and its subdomains, use:

(^|\.)googleapis\.com$

Using an unescaped value such as googleapis.com makes . a regex wildcard and, without anchors, may also match unintended substrings.

If only exact domain names are required, keep the column as String and remove the regex operator:

not (
  $dns.network.dns.questions.name in
    %dns_tunnel_list.domain_names
)

One final behavior to be aware of: network.dns.questions.name is repeated, and YARA-L evaluates repeated values through implicit unnesting. An event containing several DNS questions can therefore match when at least one question is outside the table.

​@whathehack81 thanks for your help on this.  However, there is possibility I’m still not getting something right.

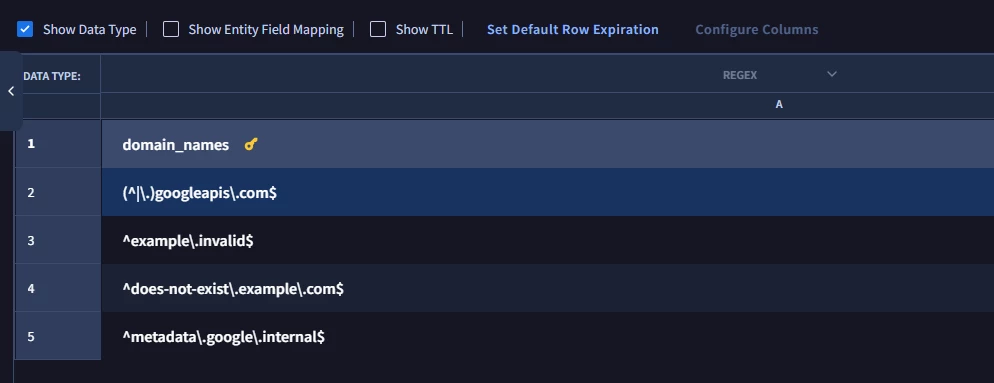

Here’s my data table rows:

domain_names
(^|\.)googleapis\.com$
^example\.invalid$
^does-not-exist\.example\.com$
^metadata\.google\.internal$

Therefore, If I were to run a UDM query searching for messages where the “network.dns.questions.name” has any of these values, I’d expect results back, but that’s not the case.

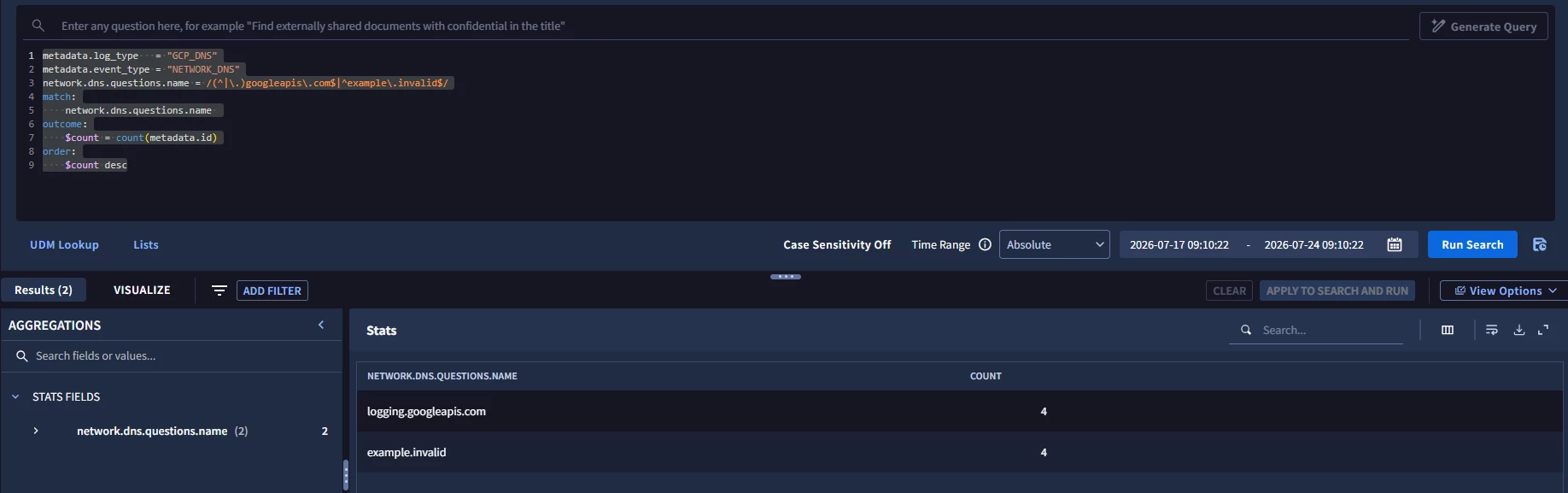

For example, running below search:

metadata.log_type   = "GCP_DNS"
metadata.event_type = "NETWORK_DNS"
network.dns.questions.name = /(^|\.)googleapis\.com$|^example\.invalid$/
match:
    network.dns.questions.name
outcome:
    $count = count(metadata.id)
order:
    $count desc

Returns:

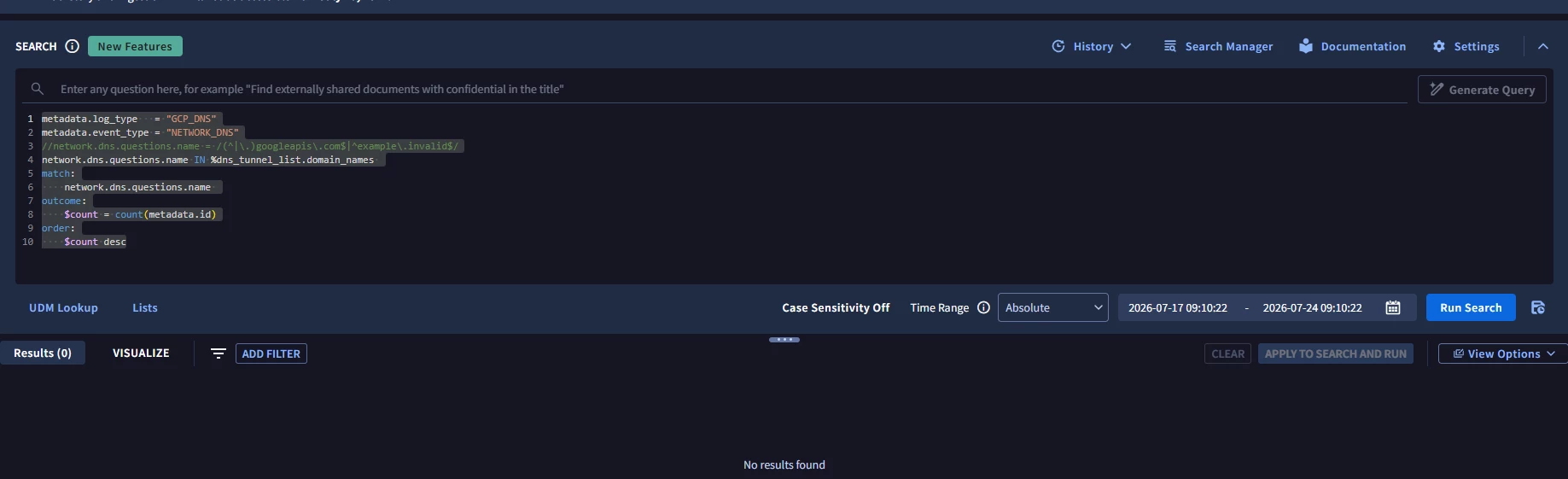

However, running the same query against the data table like below

metadata.log_type   = "GCP_DNS"
metadata.event_type = "NETWORK_DNS"
network.dns.questions.name IN %dns_tunnel_list.domain_names
match:
    network.dns.questions.name
outcome:
    $count = count(metadata.id)
order:
    $count desc

Returns:

Also, you mentioned “Make sure dns_tunnel_list.domain_names is an unmapped regex-type column.”  I did not quite follow what this is and how to confirm.

Thanks for your help.

Your direct regex search confirms that network.dns.questions.name and the patterns themselves are working.

The remaining issue is most likely the data type assigned to the domain_names column.

In your screenshot, Show Data Types is not enabled. Turn that on and confirm that domain_names is shown as REGEX, not STRING.

“Unmapped” simply means the column is not mapped to an entity field. It should still be explicitly configured with the REGEX data type.

Once you confirm, I would make the regex operation explicit

metadata.log_type = "GCP_DNS"

metadata.event_type = "NETWORK_DNS"

network.dns.questions.name in regex %dns_tunnel_list.domain_names

match:

  network.dns.questions.name

outcome:

  $count = count(metadata.id)

order:

  $count desc

If domain_names shows as STRING, the regex values are currently being compared as literal strings. You will need to recreate the table with that column configured as REGEX, because the column configuration cannot be changed after the table is saved.

Your table entries should remain without /.../ delimiters, as you currently have them.

The regex keyword is technically optional when the column is correctly typed as REGEX, but including it removes ambiguity and makes the intended comparison clear.
